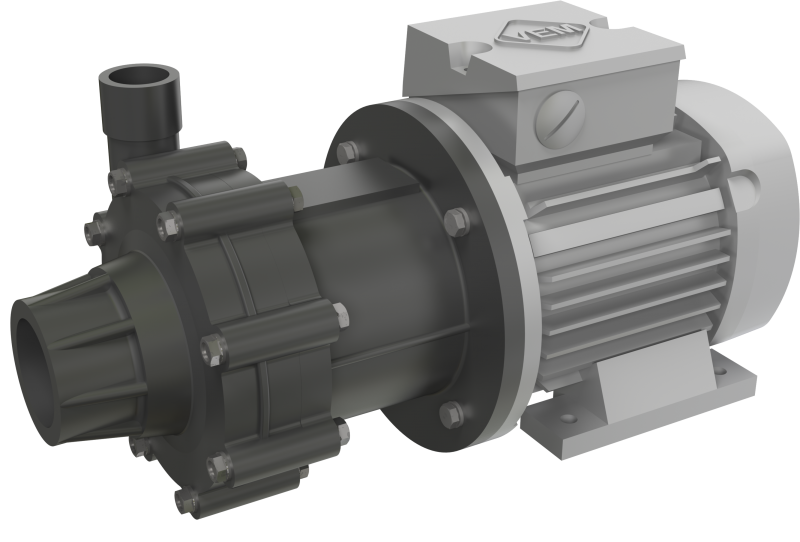

Chemical resistant centrifugal pump EUROLINE M10.2H

Chemical resistant centrifugal pump EUROLINE M10.2H
Chemical resistant centrifugal pump EUROLINE M10.2H

For a larger view click on the thumbnail



Technical data M10.2H (462.06 KB)

Normal suction, magnetically driven, leak-free centrifugal chemical pump, all wetted pump parts made of non-metallic materials also according to ATEX 2014/34/EU in modular concept, according to CE regulations.

MARCH magnetically driven centrifugal chemical pumps operate entirely without mechanical shaft sealing. The power is transmitted to the hydraulic part by a force-locking connection using powerful permanent magnets, without physical contact. MARCH magnetically driven centrifugal chemical pumps meet maximum requirements in terms of quality, economy and reliability when pumping aggressive, toxic and environmentally hazardous liquids.

Features

  • Centrifugal Pump
  • Open Impeller, capsulated
  • Leak-free
  • Magnetic driven
  • NdFeB permanent magnets
  • Closed coupled
  • Normal suction
  • Maintenance free
  • Only a few wear parts
  • Pump execution acc. to Ex II2G cbk T3-5



TECHNICAL DATA FOR THE STANDARD VERSION

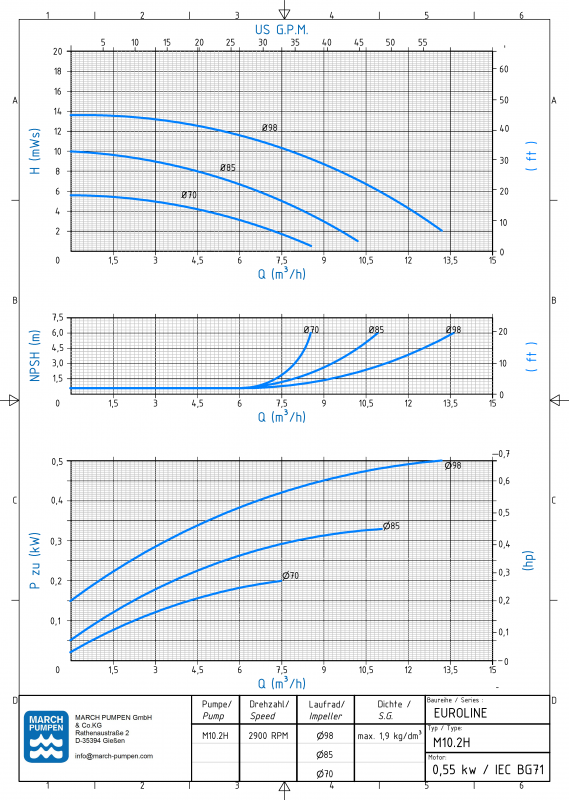

Performance data

Flow rate:max. 13 m3/h
Discharge head:max. 14 mWs

Temperatures

PP:max. 60 °C
PVDF:max. 90 °C

Available materials

Housing:PP, PVDF
Pump shaft:Al2O3
Pressure plate:Al2O3, PTFE
O-Ring:EPDM, FKM, FFKM, FEP
Sleeve bearingTeflon

System pressure

Max.:4 bar

Connection on suction side

Thread G 1 1/2“ (f)
Loose-type flange DN 40

Connection on discharge side

Thread G 1“ (m)
Loose-type flange DN 25

Motor

Individual
