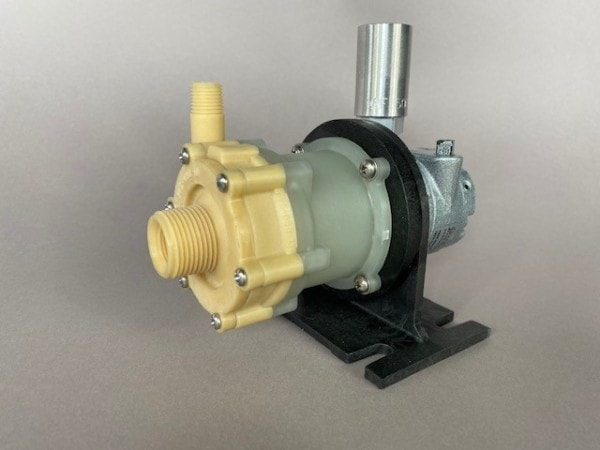

BC-2K-MD-AM Mag Drive Pump

BC-2K-MD-AM Mag Drive Pump
Für eine größere Ansicht klicken Sie auf das Vorschaubild



March Pump’s industrial BC-2CP-MD-AM is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 7.2 gallons per minute at 1 foot, and its maximum head is 40 Feet (17.3PSI).

Unit60Hz
SystemUSMetric
Max Flow7.2 GPM27.2 LPM
Max Head40 FT12.1 M
Power0.125 HP0.093 KW

Unit50Hz
SystemUSMetric
Max Flow7.2 GPM27.2 LPM
Max Head40 FT12.1 M
Power0.125 HP0.093 KW

Electrical/Air: 23PSI and 4CFM
Inlet: 3/8"FPT & 3/4"MPT
Outlet: 1/4"MPT
  • Wet End: Glass Filled Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washer)
  • Max Internal Pressure: 75 PSI / 5.2 bar
  • Max Liquid Temperature: 200 °F / 93 °C
  • Note: Product image may be different than actual product received.

Part Numbers


P/NPump DescriptionModified With
0125-0139-0100BC-2K-MD-AMStandard
 The below are modified BC-2K-MD-AM's
0125-0139-0112BC-2K-MD-AMTeflon O-Ring
0125-0139-0113BC-2K-MD-AMEPDM O-Ring

Parts Breakdown

Parts Image

ItemPart NumberQtyDescription
 0125-0139-01001BC-2K-MD-AM Complete Standard Pump
10115-0062-10006#7-19 x 1-7/16" Long Self-Tapping Screw (Stainless)
20125-0056-10001Cover with 3/8” FPT x 3/4” MPT Inlet (Glass Filled Kynar)
30125-0065-100013/32" CS x 2-3/16" OD "O" Ring (Viton)
40130-0028-10001Thrust Washer (Ceramic)
50125-0061-10001Shaft (Ceramic)
60125-0087-02001Encapsulated Impeller (Glass Filled Kynar)
70125-0058-10001Rear Housing with 1/4” MPT Outlet (Glass Filled Kynar)
80125-0092-000010.375” Bore Drive Magnet
90125-0069-10001Motor Bracket (Plastic)
100115-0023-10004#8-32 x 1-1/8” Long Screw (Stainless)
110858-0004-10004#8 Washer (Stainless)
120986-0001-01001Connecting Bracket
130210-0038-10002#8-32 Set Screw
140125-0106-10001Base (Plastic)
150858-0003-10004#8 Split Lock Washer
160410-0039-10004#8 Nut
170986-0002-10001Air Motor

Options

Options Image

ItemPart NumberQtyDescription
30125-0066-100013/32” CS x 2-3/16” OD “O” Ring (Buna N)
30125-0135-100013/32"CS x 2-3/8" OD (Teflon)
30750-0180-100013/32” CS x 2-3/16” OD “O” Ring (EPDM)
50125-0125-10001Shaft (Stainless)
 0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)

Perfect for Applications Including

Applications for the BC-2K-MD-AM Mag Drive includes chemical recirculation and chemical transfer.

Great for Chemicals Including

The BC-2K-MD-AM has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Hydrofluoric Acid, Hydrogen Peroxide, Nitric Acid, Phosphoric Acid, Potassium Chloride, Sodium Chloride, Sodium Hypochlorite, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The BC-2K-MD-AM may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the BC-2K-MD-AM. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial BC-2K-MD-AM is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 7.2 gallons per minute at 1 foot, and its maximum head is 40 Feet (17.3PSI). The standard wet end (the materials that come into contact with the solution) is composed of Glass Filled Kynar, Viton, and Ceramic. The inlet connection is 3/8 inch female pipe thread and 3/4 inch male pipe thread, and the outlet is 1/4 inch male pipe thread. The standard motor is a 0.125 Horsepower Compressed Air Motor which requires 23SI. The maximum internal pressure the pump can tolerate is 75PSI, and the maximum liquid temperature is 200 Fahrenheit or 93 Celsius. The March BC-2K-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March BC-2K-MD is suitable for your application, please contact March Pump.
