Series 7.5

Series 7.5

March Pump Series 7.5 are centrifugal magnetic drive pumps which have a maximum flow of 82GPM and a maximum head of 85 feet. They are available in Polypropylene and Virgin Kynar. The inlet is 2 inch and the outlet is 1.5 inch. They use a 2 horsepower three phase (230V/460V) motors. Explosion proof motors for hazardous locations and 575V motors are additional options.

Show 1 to 4 (of in total 4 products)
  • Sites:
  • 1



TE-7.5K-MD with Flanges Magnetic Drive Pump

March Pump’s industrial TE-7.5K-MD with Flanges is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and deionized water systems. It is capable of generating a maximum flow of 82 gallons per minute at 40 feet, and its maximum head is 85 Feet (37PSI).

TE-7.5K-MD-AM

Applications for the TE-7.5K-MD-AM Magnetic Drive Pump include chemical recirculation, chemical transfer, bicarbonate systems, deionized water systems, refrigerators, scrubber systems, detergent mixers, computer cooling, carbon arc furnace cooling, ion exchange recovery, and aquariums.

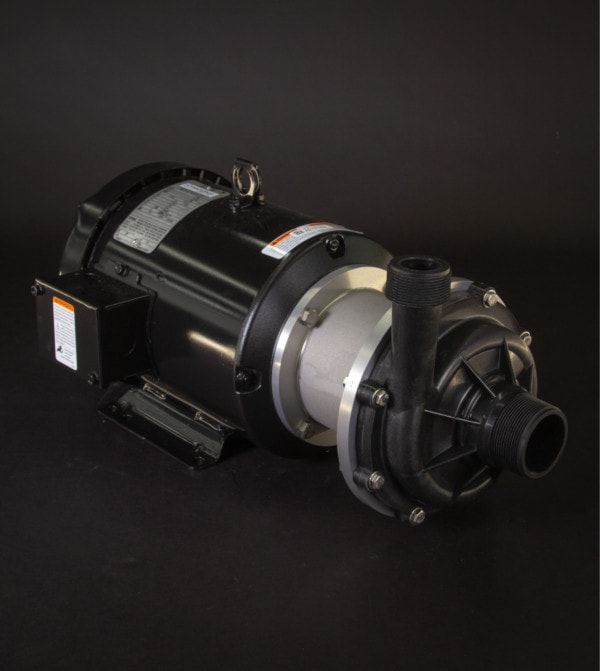

TE-7.5P-MD Magnetic Drive Pump

March Pump’s industrial TE-7.5P-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and deionized water systems. It is capable of generating a maximum flow of 82 gallons per minute at 40 feet, and its maximum head is 85 Feet (37PSI).

TE-7.5P-MD-AM

  • Wet End: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
  • Max Internal Pressure: 60 PSI / 4.1 bar
  • Max Liquid Temperature: 190 °F / 87°C
  • Note: Product image may be different than actual product received.
