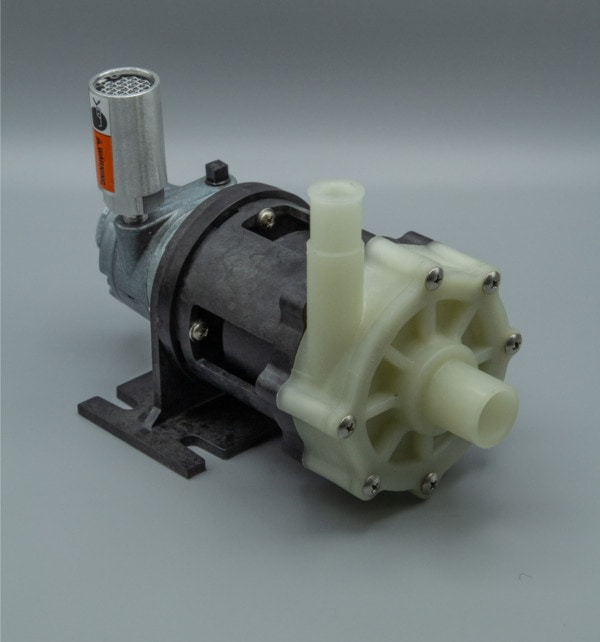

BC-4A-MD-AM Magnetically Coupled Pump

BC-4A-MD-AM Magnetically Coupled Pump
Für eine größere Ansicht klicken Sie auf das Vorschaubild



March Pump’s industrial BC-4A-MD-AM is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 18 gallons per minute at 1 feet, and its maximum head is 50 Feet (21PSI).

SystemUSMetric
Max Flow18 GPM 68 LPM
Max Head50 FT15.2 M
Power0.125 HP0.093 KW
Electrical/Air: 65 PSI and 8CFM
Inlet: 1"OD
Outlet: 3/4"OD
  • Wet End: Polypropylene (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washers), Viton (O-Ring)
  • Max Internal Pressure: 50 PSI / 3.4 bar
  • Max Liquid Temperature: 190 °F / 87 °C
  • Note: Product image may be different than actual product received.

Part Numbers

P/NPump DescriptionModified With
0145-0053-0100BC-4A-MD-AMStandard
The below are modified BC-4A-MD-AM's

Parts Breakdown

Parts Image
ItemPart NumberQtyDescription
0145-0053-01001BC-4A-MD-AM Complete Standard Pump
10150-0021-10007#8-32 x 1-3/4” Long Screw (Stainless)
20150-0150-10001Cover w 1” OD Inlet (Polypropylene)
30750-0986-100010.078” CS x 2.834” ID “O” Ring (Viton)
40130-0028-10001Thrust Washer (Ceramic)
50130-0024-10001Shaft (Ceramic)
60145-0033-02001Encapsulated Impeller (Polypropylene)
70150-0159-01001Rear Housing with 3/4" OD Outlet & Ceramic Thrust Washer (Polypropylene)
80151-0061-02001Drive Magnet
90145-0010-10001Motor Bracket (Plastic)
100115-0023-10004#8-32 x -1-1/8” Long Screw
110858-0004-10004#8 Flat Washer
120986-0001-01001Connecting Bracket
130210-0038-10002#8-32 Set Screw
140125-0106-10001Base
150858-0003-10004#8 Split Lock Washer
160410-0039-10004#8 Nut
170986-0002-10001Air Motor

Options

Options Image
ItemPart NumberQtyDescription
30150-0212-100010.078” CS x 2.893” ID “O” Ring (Teflon Encapsulated Viton)
30750-0053-100010.078" CS x 2.834" ID "O" Ring (EPDM)
50939-0003-10001Shaft (316SS)
0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)

Motor Information

0986-0002-1000 Motor
0.125HP/0.093kW, 65PSI and 8CFM, 1/8″NPT Air Connection

Please contact us for alternative motor data

Perfect for Applications Including

Applications for the BC-4A-MD-AM Magnetic Drive Pump include chemical transfer and chemical recirculation.

Great for Chemicals Including

The BC-4A-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Nitric Acid, Phosphoric Acid, Potassium Chloride, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Sodium Chloride, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The BC-4A-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the BC-4A-MD. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial BC-4A-MD-AM is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 18 gallons per minute at 1 feet, and its maximum head is 50 Feet (21PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Viton, and Ceramic. The inlet connection is 1 inch smooth, and the outlet is 3/4 inch smooth. The standard motor is .125 Horsepower compressed air motor which requires 65PSI. The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March BC-4C-MD-AM centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March BC-4A-MD-AM is suitable for your application, please contact March Pump.
