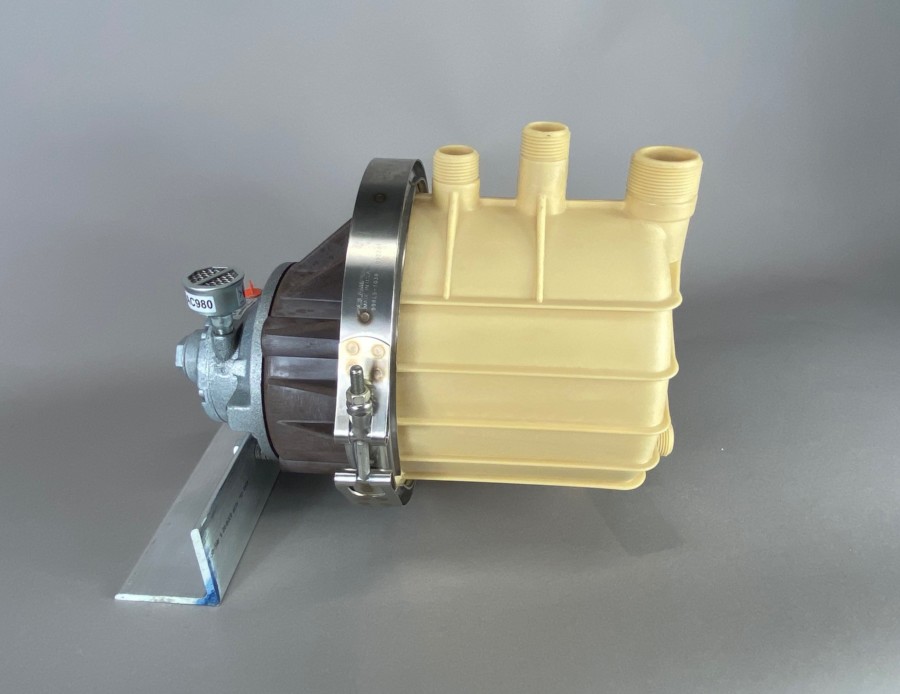

SP-TE-7K-MD-AM

SP-TE-7K-MD-AM
Für eine größere Ansicht klicken Sie auf das Vorschaubild



March Pump’s industrial SP-TE-7K-MD-AM is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 40 gallons per minute at 12 feet, and its maximum head is 65 Feet (28PSI). When the SP-TE-7P-MD is fully primed, it is capable of having a suction lift of 12 feet in 60 seconds.

SystemUSMetric
Max Flow40 GPM 151 LPM
Max Head65 FT19.8 M
Power0.95 HP0.708 KW
Electrical/Air: 95PSI and 30 CFM
Inlet: 1-1/2"MPT
Outlet: 1"MPT
Capable of a Maximum Suction Lift of 16 Feet
  • Wet End: Glass Filled Kynar (Impeller, Housings), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
  • Max Internal Pressure: 40 PSI / 2.7 bar
  • Max Liquid Temperature: 180 °F / 82 °C
  • Note: Product image may be different than actual product received.

Part Numbers

P/NPump DescriptionModified With
0155-0333-0100SP-TE-7K-MD-AM Standard
The below are modified SP-TE-7K-MD-AM's
0155-0333-0132SP-TE-7K-MD-AM Mica Teflon Bushing

Parts Breakdown

Parts Image
ItemPart NumberQtyDescription
0155-0333-01001SP-TE-7K-MD-AM
10155-0196-10001Housing Container (Kynar)
20155-0197-10002Drain & Filler Cap (Kynar)
30155-0179-100011/8" CS x 2" OD "O" Ring (Viton)
40155-0183-10001V-Retainer Clamp (Stainless)
50155-0195-10001Front Housing (Kynar)
60155-0180-100011/8" CS x 4-3/4" OD "O" Ring (Viton)
70155-0009-10001Thrust Washer (Ceramic)
80155-0039-10001Shaft (Ceramic)
90155-0160-02001Impeller with Carbon Bushing (Kynar)
100155-0181-100013/16" CS x 9-7/8" OD "O" Ring (Viton)
110155-0194-01001Rear Housing with Ceramic Thrust Washer (Kynar)
120155-0017-100023/8"-16 x 3/4" Long Screw (Stainless)
130155-0335-100023/8"-16 x 2" Long Screw (Stainless)
140155-0019-100063/8" ID x 5/8" OD Washer (Stainless)
150155-0178-10001Motor Bracket (Plastic)
160155-0130-02001Drive Magnet
170155-0257-10001Air Motor
180155-0260-00001Motor Support Bracket (Aluminum)
190155-0334-100043/8" Hex Nut (Stainless)



Options

Options Image
ItemPart NumberQtyDescription
30155-0214-100011/8" CX x 2" OD "O" Ring (Teflon Encapsulated Viton)
30155-0273-100011/8" CX x 2" OD "O" Ring (EPDM)
60155-0215-100011/8" CS x 4-3/4" OD "O" Ring (Teflon Encapsulated Viton)
60155-0274-100011/8" CS x 4-3/4" OD "O" Ring (EPDM)
90155-0160-04001Impeller with Mica Teflon Bushing (Kynar)
90155-0160-05001Impeller w/Teflon/Ryton/Carbon Bushing (Glass Filled Kynar)
100155-0219-100013/16" CS x 9-7/8" OD "O" Ring (Aflas)
100155-0275-100013/16" CS x 9-7/8" OD "O" Ring (EPDM)
0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)

Motor Information

0155-0257-1000 Motor
0.95HP/0.708kW, 100PSI and 30CFM, 1/4″NPT Air Connection

Please contact us for alternative motor data

Perfect for Applications Including

Applications for the SP-TE-7K-MD-AM Magnetic Drive Self Priming Pump include chemical recirculation, chemical transfer, and scrubber systems. They are ideal for non ported tanks and siphon feed tanks.

Great for Chemicals Including

The SP-TE-7K-MD-AM has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Hydrofluoric Acid, Hydrogen Peroxide, Nitric Acid, Phosphoric Acid, Potassium Chloride, Sodium Chloride, Sodium Hypochlorite, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The SP-TE-7K-MD-AM may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the SP-TE-7K-MD-AM. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial SP-TE-7K-MD-AM is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 40 gallons per minute at 12 feet, and its maximum head is 65 Feet (28PSI). When the SP-TE-7K-MD-AM is fully primed, it is capable of having a suction life of 16 feet in 120 seconds. The maximum lift or equivalent is 21 feet. The standard wet end (the materials that come into contact with the solution) is composed of glass filled Kynar, Viton, Carbon, and Ceramic. The inlet connection is 1-1/2 inch male pipe thread, and the outlet is 1 inch male pipe thread. The standard motor is a Compressed Air Motor which may require 95PSI and 30CFM. The maximum internal pressure the pump can tolerate is 40PSI, and the maximum liquid temperature is 180 Fahrenheit or 82 Celsius. The March SP-TE-7K-MD-AM centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March SP-TE-7K-MD is suitable for your application, please contact March Pump.
