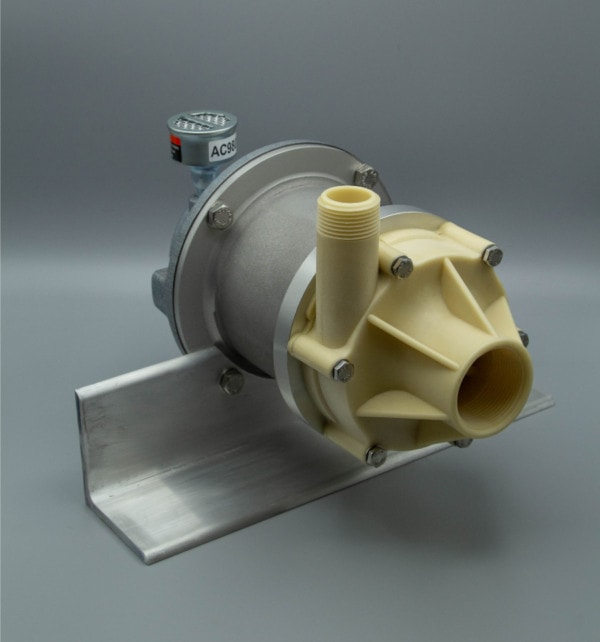

TE-7K-MD-AM Magnetic Drive Pump

TE-7K-MD-AM Magnetic Drive Pump
Für eine größere Ansicht klicken Sie auf das Vorschaubild



March Pump’s industrial TE-7K-MD-AM is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 44 gallons per minute at 15 feet, and its maximum head is 86 Feet (37PSI).

SystemUSMetric
Max Flow44 GPM 166 LPM
Max Head86 FT26.2 M
Power0.95 HP0.708 KW
Electrical/Air: 95PSI and 30CFM
Inlet: 1-1/2"FPT
Outlet: 1"MPT
  • Wet End: Glass Filled Kynar (Front Housing, Rear Housing),Glass Filled Kynar (Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
  • Max Internal Pressure: 75 PSI / 5.1 bar
  • Max Liquid Temperature: 200 °F / 93 °C
  • Note: Product image may be different than actual product received.

Part Numbers

P/NPump DescriptionModified With
0155-0261-0100TE-7K-MD-AM Standard
The below are modified TE-7K-MD-AM's
0155-0261-0112TE-7K-MD-AM Teflon O-Ring
0155-0261-0132TE-7K-MD-AM Mica Teflon Bushing

Parts Breakdown

Parts Image
ItemPart NumberQtyDescription
0155-0261-01001TE-7K-MD-AM Complete Standard Pump
10155-0014-100061/4"-20 x 2" Long Screw (Stainless)
20155-0021-100061/4” ID x 1/2” OD Washer (Stainless)
30155-0125-10001Front Housing (Kynar)
40155-0010-100011/8" CS x 4-3/8" OD "O" Ring (Viton)
50155-0009-10001Thrust Washer (Ceramic)
60155-0039-100014.070" Long Shaft (Ceramic)
70155-0160-02001Impeller w/Carbon Bushing (Kynar)
80155-0124-01001Rear Housing w/Ceramic Thrust Washer (Kynar)
90155-0130-02001Drive Magnet
100155-0260-00001Pump Support Bracket (Aluminum)
110161-0042-100023/8”-16 x 1-1/4” Long Screw (Stainless)
120155-0017-100023/8”-16 ID x 3/4” Long Screw (Stainless)
130155-0019-100043/8” ID x 5/8” OD Washer (Stainless)
141095-0015-00101Motor Bracket (Aluminum)
150155-0257-10001Air Motor
WEK0155-0166-01001Wet End Kit (Items: 1, 2, 3, 4, 5, 6, 7, 8)

Options

Options Image
ItemPart NumberQtyDescription
40155-0071-100011/8" CS x 4-3/8" OD "O" Ring (Teflon Encapsulated Viton)
40155-0105-100011/8" CS x 4-3/8" OD "O" Ring (EPDM)
50155-0084-10001Thrust Washer (Hastelloy "C")
50155-0149-10001Thrust Washer (Silicon Carbide)
50155-0233-10001Thrust Washer (Zirconium)
60155-0146-100014.070" Long Shaft (Stainless)
60155-0234-100014.070" Long Shaft (Hastelloy "C")
70155-0160-04001Impeller w/Mica Teflon Bushing (Kynar)
70155-0160-05001Impeller w/Teflon/Ryton/Carbon Bushing (Kynar)
140155-0092-01001Motor Bracket (Plastic)
0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)
Flanges (Not Shown)

Motor Information

0155-0257-1000 Motor
0.95HP/0.708kW, 100PSI and 30CFM, 1/4″NPT Air Connection

Please contact us for alternative motor data

Perfect for Applications Including

Applications for the TE-7K-MD-AM Magnetic Drive Pump include chemical recirculation, chemical transfer, bicarbonate systems, deionized water systems, refrigerators, scrubber systems, detergent mixers, computer cooling, carbon arc furnace cooling, ion exchange recovery, and aquariums.

Great for Chemicals Including

The TE-7K-MD-AM has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Hydrofluoric Acid, Hydrogen Peroxide, Nitric Acid, Phosphoric Acid, Potassium Chloride, Sodium Chloride, Sodium Hypochlorite, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The TE-7K-MD-AM may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-7K-MD-AM. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial TE-7K-MD-AM is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 44 gallons per minute at 15 feet, and its maximum head is 86 Feet (37PSI). The standard wet end (the materials that come into contact with the solution) is composed of Glass Filled Kynar, Viton, Carbon, and Ceramic. The inlet connection is 1-1/2 inch female pipe thread, and the outlet is 1 inch male pipe thread. The standard motor is a Compressed Air Motor which may require 95PSI and 30CFM. The maximum internal pressure the pump can tolerate is 75PSI, and the maximum liquid temperature is 200 Fahrenheit or 93 Celsius. The March TE-7K-MD-AM centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-7K-MD-AM is suitable for your application, please contact March Pump.
