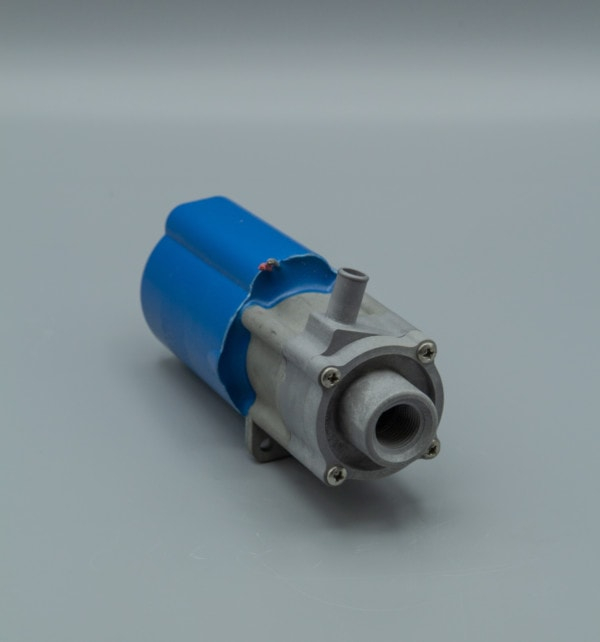

893-09 Brushless 12V DC Pump

893-09 Brushless 12V DC Pump
Für eine größere Ansicht klicken Sie auf das Vorschaubild



March Pump’s industrial 893-09 is an American submersible seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and heat transfer. It is capable of generating a maximum flow of 2.7 gallons per minute at 1 foot, and its maximum head is 10.6 Feet (4.5PSI).

SystemUSMetric
Max Flow2.7 GPM 11 LPM
Max Head10.6 FT3.3 M
Power0.006 HP0.004 KW
Electrical/Air: 12V (Voltage Range 7-14)
Inlet: 3/8"FPT
Outlet: 3/8"OD
Submersible: Yes
  • Wet End: Noryl (Front and Rear Housings), Nylon (Impeller), Carbon/Teflon (Thrust Washer), Buna N (O-Ring), 316 Stainless Steel (Shaft), Ceramic Magnet
  • Uses: Must be submerged
  • When submerged, the following is also in contact with the solution: Epoxy, Delrin, Motor Leads
  • Max Internal Pressure: 50 PSI / 3.4 bar
  • Max Liquid Temperature: 120 °F / 49 °C
  • Note: Product image may be different than actual product received.

Part Numbers

P/NPump DescriptionModified With
0893-0061-0200893-09 with Ametek MotorStandard
The below are modified 893-09's
0893-0061-0261893-09 with Ametek MotorPolypropylene Encapsulated Impeller and Teflon O-Ring
0893-0061-0262893-09 with Ametek MotorPolypropylene Encapsulated Impeller and EPDM O-Ring
0893-0061-0263893-09 with Ametek MotorPolypropylene Encapsulated Impeller and Viton O-Ring

Parts Breakdown

Parts Image
ItemPart NumberQtyDescription
0893-0061-02001893-09 Complete Standard Pump
10115-0062-10004#7-19 x 1-7/16″ Long Self Tapping Screw (Stainless)
20893-0004-10001Cover with 3/8″ FPT Inlet (Noryl)
30115-0018-100021/16″ CS x 1-7/16″ OD O-Ring (Buna N)
40115-0008-01001Impeller (Nylon/Ceramic Magnet)
50115-0032-10001Shaft (316 Stainless Steel)
60115-0033-10001Rear Thrust Washer (Carbon/Teflon)
70893-0003-10001Rear Housing with 3/8″ OD Outlet (Noryl)
80115-0101-01001Drive Magnet
9Not AvailableN/A Encapsulated 12V DC Brushless Motor (Ametek)

Options

Options Image

ItemPart NumberQtyDescription
30115-0061-100021/16″ CS x 1-7/16″ OD O-Ring (Viton)
30115-0069-100021/16″ CS x 1-7/16″ OD O-Ring (Teflon)
30750-0146-100021/16″ CS x 1-7/16″ OD O-Ring (EPDM)
40115-0119-10001Impeller (Polypropylene)
50115-0042-10001Shaft (Ceramic)
0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)

Series 1-MD Wet Ends may be used on Series 893

Motor Information

10″ Leads, Submersible
12V, 1.5 AMPS, 4000 RPM, 0.006 HP / 0.004 kW
Voltage Range 7-14V

Please contact us for alternative motor data

Perfect for Applications Including

Applications for the 893-09 Magnetic Drive Pump include computer cooling, photographic processing equipment, refrigeration systems, and water displays.

Great for Chemicals Including

The 893-09 has pumped many chemicals. The 893-09 may have been modified to handle certain chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the 893-09. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial 893-09 is an American submersible seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and heat transfer. It is capable of generating a maximum flow of 2.7 gallons per minute at 1 foot, and its maximum head is 10.6 Feet (4.5PSI). The standard wet end (the materials that come into contact with the solution) is composed of Noryl, Nylon, Carbon/Teflon, Buna N, Stainless Steel, and Ceramic Magnet. When submerged Epoxy, Delrin, and the motor leads are also in contact with the solution. The inlet connection is 3/8 inch female pipe thread, and the outlet is 3/8 inch smooth. The standard motor is a 0.006 Horsepower DC Brushless Motor, available in 12 Volts. The 12 Volt Motor has an operating range from 7 to 14 Volts. The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius when not submerged, or 130 Fahrenheit or 54 Celsius when submerged. The March 893-09 centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March 893-09 is suitable for your application, please contact March Pump.
