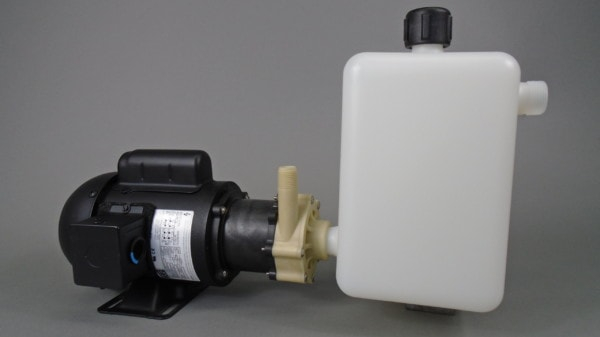

TE-5K-MD with 750 Self Priming Chamber

TE-5K-MD with 750 Self Priming Chamber
Für eine größere Ansicht klicken Sie auf das Vorschaubild



March Pump’s industrial TE-5K-MD with 750 Self Priming Chamber is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 17 gallons per minute at 4 feet, and its maximum head is 29 Feet (12PSI). It has a maximum suction lift of 10 feet.

Unit60Hz
SystemUSMetric
Max Flow18 GPM68.1 LPM
Max Head29 FT8.85 M
Power0.2 HP0.149 KW

Unit50Hz
SystemUSMetric
Max Flow15.9 GPM60.5 LPM
Max Head20.7 FT6.3 M
Power0.2 HP0.149 KW

Electrical/Air: 1Ph 115/230V 60Hz, 1Ph 110/220V 50Hz, or 3Ph 230/460V 50/60Hz, or 3Ph 575V 60Hz
Inlet: 1"MPT (750 Self Priming Chamber)
Outlet: 1/2"MPT (Pump Outlet)
Capable of a Maximum Suction Lift of 10 Feet
  • Wet End: Glass Filled Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), High Density Polyethylene (Self Priming Chamber)
  • Motor Options: Available in Explosion Proof
  • Max Internal Pressure: 25 PSI / 1.7 bar
  • Max Liquid Temperature: 130 °F / 54 °C

Part Numbers

0150-0235-0100, TE-5K-MD 1 Phase with Weg Motor and 750 Self Priming Chamber

Parts Breakdown

Parts Image

ItemPart NumberQtyDescription
 0150-0235-01001TE-5K-MD, 1 Phase, Complete Standard Pump with Priming Chamber
 0750-0227-01001Complete Self-Priming Reservoir with Filler Cap (Items: A & B)
A0155-0182-10001Filler Cap (Polypropylene)
B0750-0227-10001Reservoir (Polyethylene)
10150-0021-10007#8-32 x 1-3/4” Long Screw (Stainless)
20150-0124-10001Cover with 1” FPT Inlet (Glass Filled Kynar)
30750-0986-100010.078” CS x 2.834” ID “O” Ring (Viton)
40130-0028-10001Thrust Washer (Ceramic)
50130-0024-10001Shaft (Ceramic)
60150-0125-02001Impeller (Glass FIlled Kynar)
70150-0123-01001Rear Housing with 1/2" MPT Outlet & Ceramic Thrust Washer (Glass Filled Kynar)
80150-0176-03001Drive Magnet
90150-0050-10004#10-32 x 3/4" Long Screw (Stainless)
100150-0051-10004#10 Washer (Stainless)
110150-0070-01001Motor Bracket (Plastic)
120150-0213-10001Motor, TEFC, 1 Phase, 115/230 V, 50/60 Hz
WEK0150-0149-02001Wet End Kit (Items: 1, 2, 3, 4, 5, 6, 7)

Options

Options Image

ItemPart NumberQtyDescription
30750-0987-100010.078" CS x 2.834" ID "O" Ring (Buna N)
30150-0212-100010.078" CS x 2.893" ID "O" Ring (Teflon Encapsulated Viton)
30750-0053-100010.078" CS x 2.834" ID "O" Ring (EPDM)
50939-0003-10001Shaft (316SS)
60150-0125-03001Impeller with Carbon Bushing (Kynar)
60150-0125-05001Impeller with Mica Teflon Bushing (Kynar)
 0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)

Motor Information

0150-0213-1000 Motor
Conduit Box, TEFC, IP44
60Hz: 1Ph 0.2HP/0.149kW, 115/230V, 2.6/1.3AMPS, 3450 RPM
50Hz: 1Ph 0.2HP/0.149kW, 115/220V, 2.4/1.2AMPS, 2850 RPM

0150-0218-1000 Motor
Conduit Box, TEFC, IP55
60Hz: 3Ph 0.17HP/0.12kW, 230/460V, 0.7/0.35AMPS, 3450 RPM
50Hz: 3Ph 0.17HP/0.12kW, 230/460V, 0.7/0.35AMPS, 2850 RPM

Please contact us for alternative motor data

Perfect for Applications Including

Applications for the TE-5K-MD with 750 Self Priming Chamber Magnetic Drive Pump include chemical recirculation and chemical transfer.

Great for Chemicals Including

The TE-5K-MD with 750 Self Priming Chamber has pumped various chemicals. The TE-5K-MD with 750 Self Priming Camber may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-5K-MD with 750 Self Priming Chamber. Chemical Resistance Chart and Supplemental HDPE Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial TE-5K-MD with 750 Self Priming Chamber is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 17 gallons per minute at 4 feet, and its maximum head is 29 Feet (12PSI). The standard wet end (the materials that come into contact with the solution) is composed of Glass Filled Kynar, High Density Polyethylene, Viton, and Ceramic. The inlet connection is 1 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. There are two standard motors. The first is a 1 Phase 60 hertz 115/230V and 50 hertz 110/220V 0.2 horsepower totally enclosed fan cooled motor. The second is a 3 Phase 60/50HZ 230/460V IEC totally enclosed 0.17 horsepower fan cooled motor. There are performance differences between the hertz options. The maximum internal pressure the pump can tolerate is 25PSI, and the maximum liquid temperature is 130 Fahrenheit or 54 Celsius. The March TE-5K-MD with 750 Self Priming Chamber centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-5K-MD with 750 Self Priming Chamber is suitable for your application, please contact March Pump.
