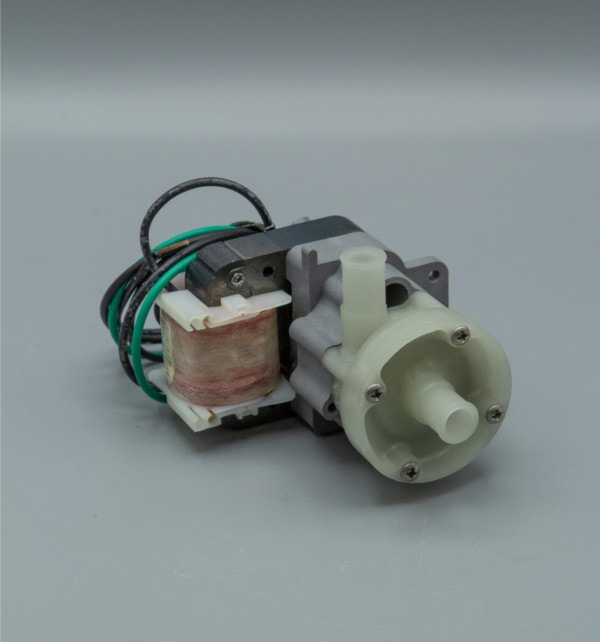

AC-1A-MD-1/2 Mag Drive Pump

AC-1A-MD-1/2 Mag Drive Pump
Für eine größere Ansicht klicken Sie auf das Vorschaubild



March Pump’s industrial AC-1A-MD-1/2 is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 3 gallons per minute at 0.25 feet, and its maximum head is 4.6 Feet (2PSI).

Unit60Hz
SystemUSMetric
Max Flow3 GPM 11.3 LPM
Max Head4.6 FT1.4 M
Power0.005 HP0.003 KW
Unit50Hz
SystemUSMetric
Max Flow2.3 GPM9 LPM
Max Head3.3 FT1 M
Power0.005 HP0.003 KW
Electrical/Air: 115V 60Hz or 230V 50/60Hz
Inlet: 1/2"OD
Outlet: 1/2"OD
  • Wet End: Polypropylene (Front Housing, Rear Housing, Impeller), Buna N (O-Ring), Carbon/Teflon (Thrust Washer), 316 Stainless Steel (Shaft)
  • Max Internal Pressure: 50 PSI / 3.4 bar
  • Max Liquid Temperature: 190 °F / 87 °C
  • Note: Product image may be different than actual product received.

Part Numbers

P/NPump DescriptionModified With
0115-0064-0100AC-1A-MD-1/2 115VStandard
0115-0064-0200AC-1A-MD-1/2 230VStandard
The below are modified AC-1A-MD-1/2's
0115-0064-0110AC-1A-MD-1/2 115VViton O-Ring
0115-0064-0112AC-1A-MD-1/2 115VTeflon O-Ring
0115-0064-0113AC-1A-MD-1/2 115VEPDM O-Ring
0115-0064-0210AC-1A-MD-1/2 230VViton O-Ring
0115-0064-0212AC-1A-MD-1/2 230VTeflon O-Ring
0115-0064-0213AC-1A-MD-1/2 230VEPDM O-Ring

Parts Breakdown

Parts Image
ItemPart NumberQtyDescription
0115-0064-01001AC-1A-MD-1/2, 1 Phase, 115V, Complete Standard Pump
0115-0064-02001AC-1A-MD-1/2, 1 Phase, 230V, Complete Standard Pump
10115-0062-10004#7-19 x 1-7/16″ Long Self Tapping Screw (Stainless)
20115-0060-10001Cover with 1/2″ OD Inlet (Polypropylene)
30115-0018-100011/16″ CS x 1-7/16″ OD O-Ring (Buna N)
40115-0119-10001Encapsulated Impeller (Polypropylene)
50115-0032-10001Shaft (316 Stainless)
60115-0033-10001Rear Thrust Washer (Carbon/Teflon)
70115-0059-10001Rear Housing with 1/2″ OD Outlet (Polypropylene)
120858-0009-01001Motor, 1 Phase, 115V, 60 Hz, with Motor Bracket & Drive Magnet Assembly
120858-0013-01001Motor 1 Phase, 230V, 50/60 Hz, with Motor Bracket & Drive Magnet Assembly

Options

Options Image
ItemPart NumberQtyDescription
30115-0061-100021/16″ CS x 1-7/16″ OD O-Ring (Viton)
30115-0069-100021/16″ CS x 1-7/16″ OD O-Ring (Teflon)
30750-0146-100021/16″ CS x 1-7/16″ OD O-Ring (EPDM)
50115-0042-10001Shaft (Ceramic)
80455-0038-10002#6-32 x 3/8″ Long Screw (Stainless)
90115-0081-10001Base (Stainless)
100455-0037-10002#6 Lockwasher (Stainless)
110455-0043-10002#6-32 Nut (Stainless)
0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)

Motor Information

115V Motor
16″ Loose Leads
60Hz: 1Ph 0.005 HP / 0.003 kW, 0.45 AMPS, 3200 RPM

230V Motor
16″ Loose Leads
60Hz: 1Ph 0.005 HP / 0.003 kW, 0.23 AMPS, 3200 RPM
50Hz: 1Ph 0.005 HP / 0.003 kW, 0.23 AMPS, 2650 RPM

Please contact us for alternative motor data

Perfect for Applications Including

Applications for the AC-1A-MD-1/2 Magnetic Drive Pump include chemical transfer, photographic processing equipment, refrigeration systems, and water displays.

Great for Chemicals Including

The AC-1A-MD-1/2 has pumped Acetone, Ammonium Chloride, Ammonium Chloride, Ammonium Hydroxide, Citric Acid, Ethylene Glycol, Magnesium Nitrate, Potassium Carbonate, Sodium Borate, Fresh Water, Salt Water, and many more chemicals. The AC-1A-MD-1/2 may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the AC-1A-MD-1/2. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial AC-1A-MD-1/2 is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 3 gallons per minute at 0.25 feet, and its maximum head is 4.6 Feet (2PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Buna N, Carbon/Teflon, and Stainless Steel. The inlet connection is 1/2 inch smooth, and the outlet is 1/2 inch smooth. The standard motor is a 1 Phase 115V or 230V 0.05 Horsepower motor, which can be run on 60 hertz on 115V or 50 and 60 hertz on 230V (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March AC-1A-MD-1/2 centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March AC-1A-MD-1/2 is suitable for your application, please contact March Pump.
