TE-10K-MD Magnetic Drive Pump

TE-10K-MD Magnetic Drive Pump
Für eine größere Ansicht klicken Sie auf das Vorschaubild

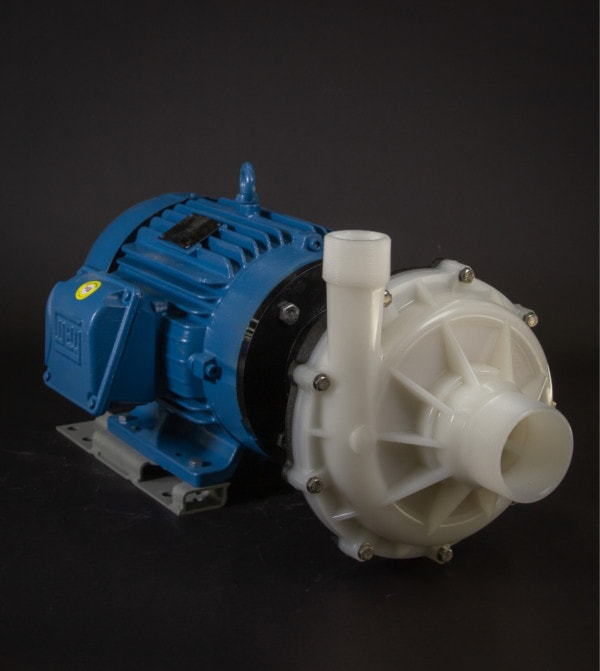

March Pump’s industrial TE-10K-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 200 gallons per minute at 70 feet, and its maximum head is 160 Feet (70PSI).

Unit60Hz
SystemUSMetric
Max Flow200 GPM 757 LPM
Max Head160 FT48.7 M
Power10 HP7.46 KW
Unit50Hz
SystemUSMetric
Max Flow172 GPM654 LPM
Max Head112 FT34.1 M
Power10 HP7.46 KW
Electrical/Air: 3Ph 230/460V 60Hz & 380V 50Hz, or 3Ph 575V 60Hz
Inlet: 3"MPT
Outlet: 2"MPT
  • Wet End: Natural Kynar (Front Housing, Rear Housing), Glass Filled Kynar (Impeller), Viton (Gasket), Carbon (Bushing), Ceramic (Shaft, Thrust Washers)
  • Additional Motor Options: Available in 10HP Explosion Proof, 575V, and Washdown
  • Max Internal Pressure: 75 PSI / 5.2 bar
  • Max Liquid Temperature: 190 °F / 87 °C
  • Note: Product image may be different than actual product received.

Part Numbers

P/NPump DescriptionModified With
0161-0016-0100TE-10K-MD 3Ph 10HP Standard
0161-0016-0200TE-10K-MD 3Ph 10HP Explosion Proof Standard
0161-0016-0300TE-10K-MD 3Ph 575V 10HPStandard
The below are modified TE-10K-MD's
0151-0016-0112TE-10K-MD 3Ph 10HP Teflon O-Ring
0161-0016-0212TE-10K-MD 3Ph 10HP Explosion Proof Teflon O-Ring
0161-0016-0312TE-10K-MD 3Ph 575V 10HPTeflon O-Ring
0151-0016-0113TE-10K-MD 3Ph 10HP EPDM O-Ring
0161-0016-0213TE-10K-MD 3Ph 10HP Explosion Proof EPDM O-Ring
0161-0016-0313TE-10K-MD 3Ph 575V 10HPEPDM O-Ring
0161-0016-0130TE-10K-MD 3Ph 10HP Mica Teflon Bushing
0161-0016-0230TE-10K-MD 3Ph 10HP Explosion Proof Mica Teflon Bushing
0161-0016-0330TE-10K-MD 3Ph 575V 10HPMica Teflon Bushing
0161-0016-0252TE-10K-MD 3Ph 10HP Explosion Proof Mica Teflon Bushing and Teflon O-Ring
0161-0016-0352TE-10K-MD 3Ph 575V 10HPMica Teflon Bushing and Teflon O-Ring
0161-0016-0152TE-10K-MD 3Ph 10HP Mica Teflon Bushing and Teflon O-Ring

Parts Breakdown

Parts Image
ItemPart NumberQtyDescription
0161-0016-01001TE-10K-MD, 3 Phase, Complete Standard Pump
10160-0029-100095/16”-18 x 1-3/4” Long Screw (Stainless)
20160-0030-100095/16” ID x 5/8” OD Washer (Stainless)
30161-0008-10001Pump Housing with 3" MPT Inlet & 2" MPT Outlet (Kynar)
40161-0043-100019.750” ID x 10” OD Gasket (Viton)
50161-0001-10002Front & Rear Thrust Washer (Ceramic)
60161-0002-10001Shaft (Ceramic)
70161-0005-04001Impeller w/Carbon Bushings (Glass Filled Kynar)
80161-0009-10001Rear Housing (Kynar)
90161-0031-01001Drive Magnet
100161-0007-00101Motor Bracket (Metal)
110160-0031-100041/2"-13 x 1" Long Screw (Stainless)
120161-0012-10001Motor, TEFC, 3 Phase, 230/460 V, 50/60 Hz, 10HP
WEK0161-0035-01001Wet End Kit (Items: 1, 2, 3, 4, 5, 6, 7, 8)
PLM0161-0036-01001Pump Less Motor (Items: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11)

Options

Options Image
ItemPart NumberQtyDescription
40161-0047-100019.750” ID x 10” OD Gasket (EPDM)
40161-0059-100019.750” ID x 10” OD Gasket (Teflon Encapsulated Viton)
50161-0034-10002Front & Rear Thrust Washer (Silicon Carbide)
60161-0039-10001Shaft, 3 Flats (Ceramic)
60161-0046-10001Shaft (Silicon Carbide)
70161-0005-06001Impeller with Mica Teflon Bushings (Kynar)
70161-0005-07001Impeller w/Silicon Carbide Bushings (Glass Filled Kynar)
0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)

Motor Information

0161-0012-1000 Motor
Conduit Box, TEFC, IP55, VFD Capable
60Hz: 3Ph 10HP/ 7.4kW, 230/460V, 23.2/11.6 AMPS, 3450 RPM (Usable at 208V)
50Hz: 3Ph 10HP/ 7.4kW, 380V, 14.1 AMPS, 2850 RPM (Usable at 190/220V)

Please contact us for alternative motor data

Perfect for Applications Including

Applications for the TE-10K-MD Magnetic Drive Pump include chemical recirculation, chemical transfer, deionized water systems, scrubber systems, detergent mixers, computer cooling, waste treatment plants, and plating operations.

Great for Chemicals Including

The TE-10K-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Hydrofluoric Acid, Hydrogen Peroxide, Nitric Acid, Phosphoric Acid, Potassium Chloride, Sodium Chloride, Sodium Hypochlorite, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The TE-10K-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-10K-MD. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial TE-10K-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 200 gallons per minute at 70 feet, and its maximum head is 160 Feet (70PSI). The standard wet end (the materials that come into contact with the solution) is composed of natural Kynar (PVDF), glass filled Kynar (PVDF), Viton, Carbon, and Ceramic. The inlet connection is 3 inch male pipe thread, and the outlet is 2 inch male pipe thread. The standard motor is a 3 Phase 10 Horsepower totally enclosed fan cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 75PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March TE-10K-MD centrifugal magnetic drive pump is capable of handling mildly, or highly corrosive chemicals, acids, and solvents. To determine if the March TE-10K-MD is suitable for your application, please contact March Pump.
