5C-MD Magnetic Drive Pump

Perfect for Applications Including

The most common applications for the 5C-MD Magnetic Drive Pump is fountains.

Great for Chemicals Including

The 5C-MD has pumped Fresh Water and Salt Water. The 5C-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the 5C-MD. Chemical Resistance Chart

Summary Paragraph

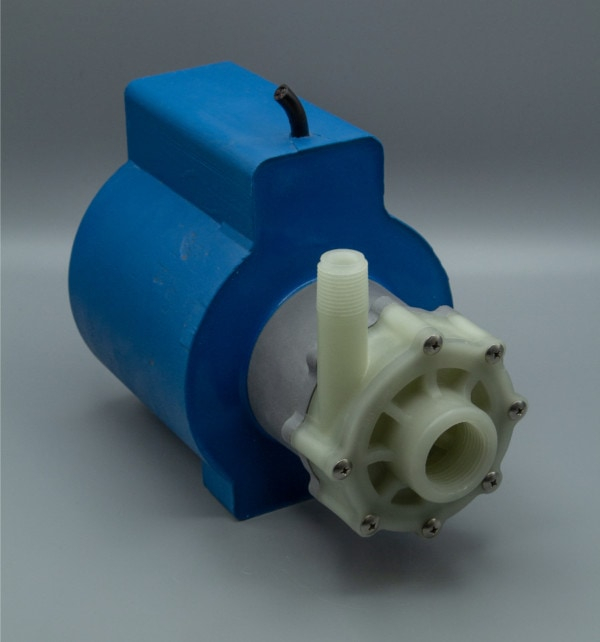

March Pump’s industrial 5C-MD is an American submersible seal-less centrifugal magnetic drive pump. It is capable of generating a maximum flow of 15 gallons per minute at 2 feet, and its maximum head is 27 Feet (11PSI). The 5C-MD pump must be submerged. The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Buna N, Ceramic, and Ceramic Magnet. When submerged, Epoxy, Stainless Steel, Noryl, and the Cord are also in contact with the solution. The inlet connection is 1 inch female pipe thread, and the outlet is 1/2 male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.125 Horsepower motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 130 Fahrenheit or 54 Celsius. The March 5C-MD centrifugal magnetic drive pump is capable of handling fresh water, salt water, and mild chemicals. To determine if the March 5C-MD is suitable for your application, please contact March Pump.
