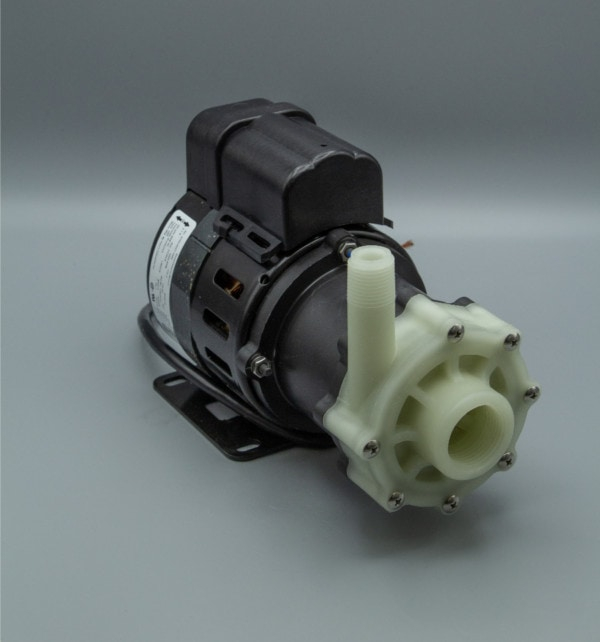

AC-5C-MD Magnetic Drive Pump

AC-5C-MD Magnetic Drive Pump
For a larger view click on the thumbnail



March Pump’s industrial AC-5C-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 17 gallons per minute at 1 feet, and its maximum head is 27 Feet (11PSI).

Unit60Hz
SystemUSMetric
Max Flow17 GPM 64.4 LPM
Max Head27 FT8.2 M
Power0.125 HP0.093 KW
Unit50Hz
SystemUSMetric
Max Flow15.9 GPM60 LPM
Max Head19.7 FT6 M
Power0.125 HP0.093 KW
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1"FPT
Outlet: 1/2"MPT
  • Wet End: Polypropylene (Front and Rear Housing, Impeller), Buna N (O-Ring), Ceramic (Shaft, Thrust Washers), Ceramic Magnet
  • Max Internal Pressure: 50 PSI / 3.4 bar
  • Max Liquid Temperature: 190 °F / 87 °C
  • Note: Product image may be different than actual product received.
  • Consider using a carbon bushing for enhanced run dry protection: Carbon Bushing Information

Part Numbers

P/NPump DescriptionModified With
0150-0026-0100AC-5C-MD 115VStandard
0150-0136-0100AC-5C-MD 230VStandard
The below are modified AC-5C-MD's
0150-0026-0130AC-5C-MD 115VCarbon Bushing
0150-0136-0130AC-5C-MD 230VCarbon Bushing

Parts Breakdown

Parts Image
ItemPart NumberQtyDescription
0150-0026-01001AC-5C-MD, 1 Phase, 115V, Complete Standard Pump,
0150-0136-01001AC-5C-MD, 1 Phase, 230V, Complete Standard Pump
10150-0021-10007#8-32 x 1-3/4” Long Screw (Stainless)
20150-0032-10001Cover with 1” FPT Inlet (Polypropylene)
30750-0987-100010.078” CS x 2.834” ID “O” Ring (Buna N)
40130-0028-10001Thrust Washer (Ceramic)
50130-0024-10001Shaft (Ceramic)
60150-0030-01001Impeller with Bare Ceramic Magnet (Polypropylene)
70150-0031-01001Rear Housing with 1/2" MPT Outlet & Ceramic Thrust Washer (Polypropylene)
80150-0081-01001Drive Magnet
90625-0024-10004#10-32 Hex Nut (Stainless)
100802-0006-10004#10 Washer (Stainless)
110150-0070-01001Motor Bracket (Plastic)
120150-0027-10001Motor, 1 Phase, 115V, 50/60 Hz
120150-0040-10001Motor, 1 Phase, 230V, 50/60 Hz
W0150-0147-02001Wet End Kit (Items: 1, 2, 3, 4, 5, 6, 7)

Options

Options Image
ItemPart NumberQtyDescription
30750-0986-100010.078" CS x 2.834" ID "O" Ring (Viton)
30150-0212-100010.078" CS x 2.893" ID "O" Ring (Teflon Encapsulated Viton)
30750-0053-100010.078" CS x 2.834" ID "O" Ring (EPDM)
50939-0003-10001Shaft (316SS)
60150-0030-07001Impeller with Bare Ceramic Magnet with Carbon Bushing (Polypropylene)
60150-0030-08001Impeller with Bare Ceramic Magnet with Mica Teflon Bushing (Polypropylene)
0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)
Flanges (Not Shown)

Motor Information

0150-0027-1000 Motor
3 Foot Cord
60Hz: 1Ph 115V 0.125HP/0.093kW, 2.1 AMPS, 3450 RPM
50Hz: 1Ph 115V 0.125HP/0.093kW, 1 AMPS, 2850 RPM

0150-0040-1000 Motor
3 Foot Cord
60Hz: 1Ph 230V 0.125HP/0.093kW, 2.1 AMPS, 3450 RPM
50Hz: 1Ph 230V 0.125HP/0.093kW, 1 AMPS, 2850 RPM

Please contact us for alternative motor data

Perfect for Applications Including

Applications for the AC-5C-MD Magnetic Drive Pump include chemical recirculation, refrigerators, small scrubbers, detergent mixers, computer cooling, carbon arc furnace cooling, and marine air conditioners.

Great for Chemicals Including

The AC-5C-MD has pumped Acetic Acid, Acetone, Ammonium Sulfate, Citric Acid, Ethylene Glycol, Ferric Sulfate, Hydrogen Peroxide, Potassium Hydroxide, Sodium Chloride, Fresh Water, Salt Water, and many more chemicals. The AC-5C-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the AC-5C-MD. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial AC-5C-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 17 gallons per minute at 1 feet, and its maximum head is 27 Feet (11PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Buna N, Ceramic, and Ceramic Magnet. The inlet connection is 1 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.125 Horsepower fan cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March AC-5C-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March AC-5C-MD is suitable for your application, please contact March Pump.
