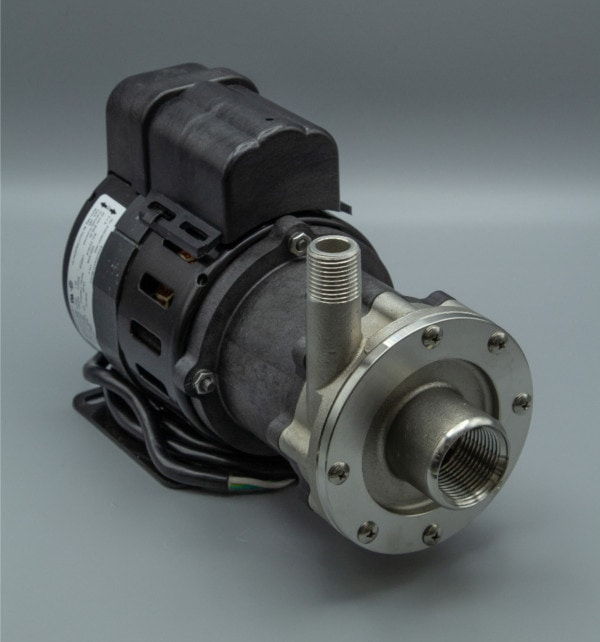

AC-5SSB-MD Magnetic Drive Pump

AC-5SSB-MD Magnetic Drive Pump
Für eine größere Ansicht klicken Sie auf das Vorschaubild



March Pump’s AC-5SSB-MD Beer Pump is an American seal-less centrifugal magnetic drive pump ideal for homebrewing. It is capable of generating a maximum flow of 17 gallons per minute at 1 foot, and its maximum head is 27 Feet (11PSI).

Unit60Hz
SystemUSMetric
Max Flow17 GPM60 LPM
Max Head27 FT6 M
Power0.125 HP.093 KW

Unit50Hz
SystemUSMetric
Max Flow15.9 GPM64.4 LPM
Max Head19.7 FT8.2 M
Power0.125 HP.093 KW

Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1"FPT
Outlet: 1/2"MPT
  • Wet End: Polysulfone (Impeller), 316 Stainless Steel (Front and Rear Housing, Magnet Shell, Shaft), Buna N (O-Ring), Ceramic (Thrust Washers)
  • Max Internal Pressure: 200 PSI / 13.7 bar
  • Max Liquid Temperature: 250 °F / 121 °C
  • Materials are FDA Food Compliant: Components are UL Recognized
  • Note: Product image may be different than actual product received.

Part Numbers

0150-0208-0100, AC-5SSB-MD 115V
0150-0208-0200, AC-5SSB-MD 230V

Parts Breakdown

Parts Image

ItemPart NumberQtyDescription
 0150-0208-01001AC-5SSB-MD, 1 Phase, 115V, Complete Standard Pump
 0150-0208-02001AC-5SSB-MD, 1 Phase, 230V, Complete Standard Pump
10150-0021-10007#8-32 x 1-3/4” Long Screw (Stainless)
20150-0111-00101Cover with 1” FPT Inlet (Stainless)
30750-0981-10001“O” Ring (Buna N)
40130-0028-10001Thrust Washer (Ceramic)
50939-0003-10001Shaft (Stainless)
60150-0173-03001Impeller with Shell & Carbon Bushing (Polysulfone/Stainless)
70150-0110-00101Rear Housing with 1/2" MPT Outlet (Stainless)
80150-0081-01001Drive Magnet (Plastic)
90625-0024-10004#10-32 Hex Nut (Stainless)
100802-0006-10004#10 Internal Tooth Lock Washer (Stainless)
110150-0126-01001Motor Bracket (Plastic)
120150-0027-10001Motor, 1 Phase, 115V, 50/60 Hz
120150-0040-10001Motor, 1 Phase, 230V, 50/60 Hz

Options

Options Image

ItemPart NumberQtyDescription
 0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)

Motor Information

0150-0027-1000 Motor
3 Foot Cord
60Hz: 1Ph 115V 0.125HP/0.093kW, 2.1AMPS, 3450 RPM
50Hz: 1Ph 115V 0.125HP/0.093kW, 1AMPS, 2850 RPM

0150-0040-1000 Motor
3 Foot Cord
60Hz: 1Ph 230V 0.125HP/0.093kW, 2.1AMPS, 3450 RPM
50Hz: 1Ph 230V 0.125HP/0.093kW, 1AMPS, 2850 RPM

Please contact us for alternative motor data

Great for Chemicals Including

The AC-5SSB-MD Beer Pump has pumped Hot Water and Hot Wort. The AC-5SSB-MD Beer Pump may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the AC-5SSB-MD Beer Pump for any of the above listed chemicals.

Summary Paragraph

March Pump’s AC-5SSB-MD Beer Pump is an American seal-less centrifugal magnetic drive pump ideal for homebrewing. It is capable of generating a maximum flow of 17 gallons per minute at 1 foot, and its maximum head is 27 Feet (11PSI). The standard wet end (the materials that come into contact with the solution) is composed of Stainless Steel, Polysulfone, Buna N, Ceramic, and Ceramic Magnet. The inlet connection is 1 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.125 Horsepower fan cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 200PSI, and the maximum liquid temperature is 250 Fahrenheit or 121 Celsius. To determine if the March AC-5SSB-MD Beer Pump is suitable for your application, please contact March Pump.
