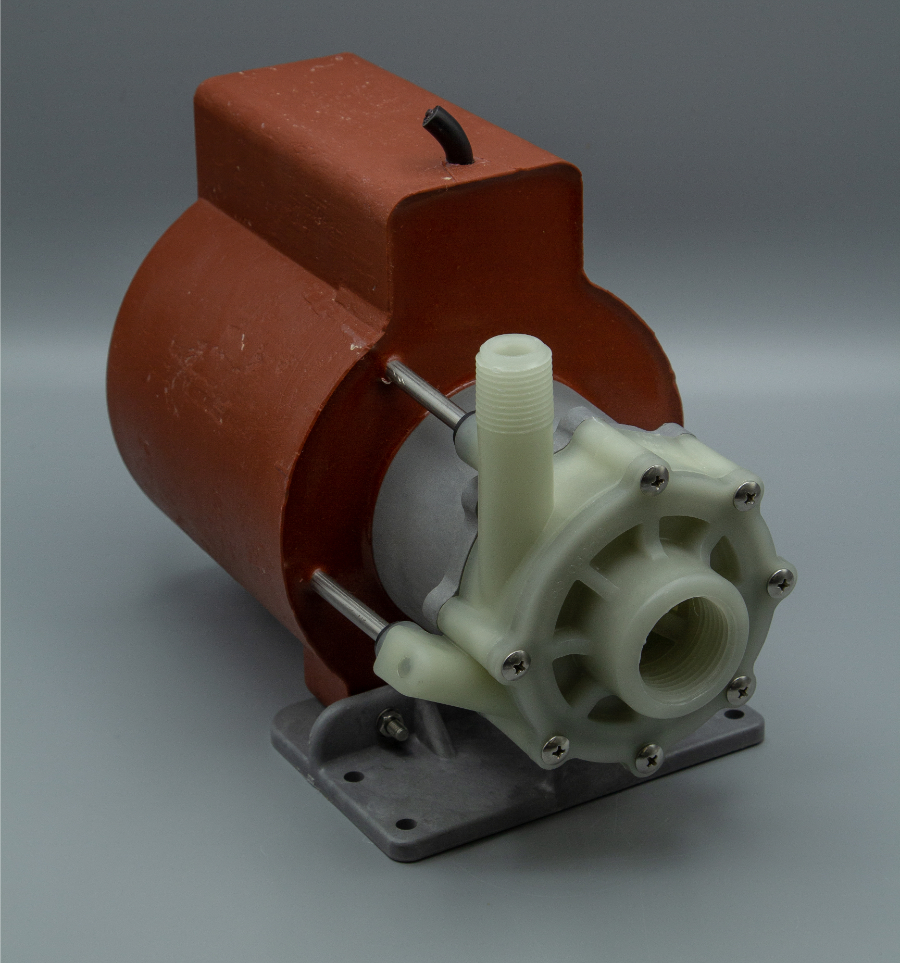

LC-5C-MD Magnetic Drive Pump

LC-5C-MD Magnetic Drive Pump
For a larger view click on the thumbnail



March Pump’s industrial LC-5C-MD is an American submersible seal-less centrifugal magnetic drive pump. It is capable of generating a maximum flow of 15 gallons per minute at 2 feet, and its maximum head is 27 Feet (11PSI). The LC-5C-MD pump may be used submerged or not submerged.

Unit60Hz
SystemUSMetric
Max Flow14.5 GPM 54.9 LPM
Max Head27 FT8.2 M
Power0.125 HP0.093 KW
Unit50Hz
SystemUSMetric
Max Flow14.5 GPM54.8 LPM
Max Head19.6 FT6 M
Power0.125 HP0.093 KW
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 1"FPT
Outlet: 1/2"MPT
Submersible: Yes
  • Wet End: Polypropylene (Front and Rear Housing, Impeller), Buna N (O-Ring, Cooling Tube Seal), 316 Stainless Steel (Cooling Tube), Ceramic (Shaft, Thrust Washers), Ceramic Magnet
  • Uses: Submersible or Open Air
  • When submerged, the following is also in contact with the solution: Epoxy, Noryl, Cord
  • Max Internal Pressure: 25 PSI / 1.7 bar
  • Max Liquid Temperature: 130 °F / 54 °C
  • Note: Product image may be different than actual product received.
  • Consider using a carbon bushing for enhanced run dry protection: Carbon Bushing Information

Part Numbers

P/NPump DescriptionModified With
0150-0004-0500LC-5C-MD 115VStandard
0150-0004-0600LC-5C-MD 230VStandard
The below are modified LC-5C-MD's
0150-0004-0530LC-5C-MD 115VCarbon Bushing
0150-0004-0630LC-5C-MD 230VCarbon Bushing

Parts Breakdown

Parts Image
ItemPart NumberQtyDescription
0150-0004-05001LC-5C-MD, 1 Phase, 115V, Complete Standard Pump
0150-0004-06001LC-5C-MD, 1 Phase, 230V, Complete Standard Pump
10150-0021-10007#8-32 x 1-3/4” Lg. Screw (Stainless)
20150-0032-10001Cover with 1” FPT Inlet (Polypropylene)
30750-0987-100010.078” CS x 2.834” ID “O” Ring (Buna N)
40130-0028-10001Thrust Washer (Ceramic)
50130-0024-10001Shaft (Ceramic)
60150-0030-01001Impeller with Bare Ceramic Magnet (Polypropylene)
70802-0008-10002#10-32 Nut (Stainless)
80802-0006-10002#10 Lock Washer
90150-0153-02001Rear Housing with 1/2" MPT Outlet, Ceramic Thrust Washer, & Plug Assembly (Polypropylene)
100150-0155-10001Mounting Base (Noryl)
110150-0020-10001Quad "O" Ring for Bracket
120125-0007-10002Cooling Tube Seal (Buna N)
13Not AvailableN/AL.C. Epoxy Motor Assembly

Options

Options Image
ItemPart NumberQtyDescription
50939-0003-10001Shaft (316SS)
60150-0098-02001Encapsulated Impeller (Polypropylene)
60150-0030-07001Impeller with Bare Ceramic Magnet and Carbon Bushing (Polypropylene)
0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)

Motor Information

115V Motor
6 Foot Cord and Plug, Submersible
60Hz: 1Ph 0.125HP/0.093kW, 1.6AMPS, 3450 RPM
50Hz: 1Ph 0.125HP/0.093kW, 1.2AMPS, 2850 RPM

230V Motor
6 Foot Cord, Submersible
60Hz: 1Ph 0.125HP/0.0093kW, 0.9AMPS, 3450 RPM
50Hz: 1Ph 0.125HP/0.0093kW, 0.5AMPS, 2850 RPM

Please contact us for alternative motor data

Perfect for Applications Including

The most common application for the LC-5C-MD Magnetic Drive Pump is for marine air conditioning and fountains.

Great for Chemicals Including

The LC-5C-MD has pumped Fresh Water and Salt Water. The LC-5C-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the LC-5C-MD. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial LC-5C-MD is an American submersible seal-less centrifugal magnetic drive pump. It is capable of generating a maximum flow of 15 gallons per minute at 2 feet, and its maximum head is 27 Feet (11PSI). The LC-5C-MD pump may be used submerged or not submerged. The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Buna N, Stainless Steel, Ceramic, and Ceramic Magnet. When submerged, Epoxy, Noryl, and the Cord are also in contact with the solution. The inlet connection is 1 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.125 Horsepower motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 130 Fahrenheit or 54 Celsius. The March LC-5C-MD centrifugal magnetic drive pump is capable of handling fresh water, salt water, and mild chemicals. To determine if the March LC-5C-MD is suitable for your application, please contact March Pump.
