TE-5C-MD 1&3 Ph Magnetic Drive Pump

TE-5C-MD 1&3 Ph Magnetic Drive Pump
Für eine größere Ansicht klicken Sie auf das Vorschaubild

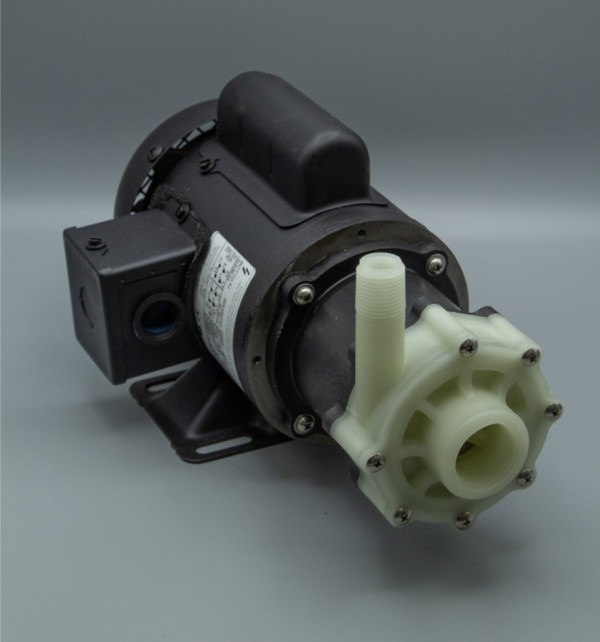

March Pump’s industrial TE-5C-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 17 gallons per minute at 4 feet, and its maximum head is 29 Feet (12PSI).

Unit60Hz
SystemUSMetric
Max Flow18 GPM68.1 LPM
Max Head29 FT8.85 M
Power0.2 HP0.149 KW

Unit50Hz
SystemUSMetric
Max Flow15.9 GPM60.5 LPM
Max Head20.7 FT6.3 M
Power0.2 HP0.149 KW

Electrical/Air: 1Ph 115/230V 60Hz, 1Ph 110/220V 50Hz, or 3Ph 230/460V 50/60Hz
Inlet: 1"FPT
Outlet: 1/2"MPT
  • Wet End: Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers)
  • Motor Options: Available in Explosion Proof
  • Max Internal Pressure: 50 PSI / 3.4 bar
  • Max Liquid Temperature: 190 °F / 87 °C
  • Note: Product image may be different than actual product received.

Part Numbers


P/NPump DescriptionModified With
0150-0214-0100TE-5C-MD 1 Phase with Weg MotorStandard
0150-0220-0100TE-5C-MD-IEC 3 PhaseStandard
0150-0026-0400TE-5C-MD 1Phase with Explosion Proof MotorStandard
 The below are modified TE-5C-MD's
0150-0214-0112TE-5C-MD 1 Phase with Weg MotorTeflon O-RIng
0150-0220-0112TE-5C-MD-IEC 3 PhaseTeflon O-RIng
0150-0026-0412TE-5C-MD 1 Phase with Explosion Proof MotorTeflon O-RIng

Parts Breakdown

Parts Image

ItemPart NumberQtyDescription
 0150-0214-01001TE-5C-MD, 1 Phase, Complete Standard Pump (Items: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12)
 0150-0026-04001TE-5C-MD, 1 Phase, Explosion Proof Complete Pump
 0150-0220-01001TE-5C-MD, 3 Phase, IEC Motor, Complete Standard Pump (Items: A, 2, 3, 4, 5, 6, 7, B, C, 10, D, E)
10150-0021-10007#8-32 x 1-3/4” Long Screw (Stainless)
20150-0032-10001Cover with 1” FPT Inlet (Polypropylene)
30750-0986-100010.078” CS x 2.834” ID “O” Ring (Viton)
40130-0028-10001Thrust Washer (Ceramic)
50130-0024-10001Shaft (Ceramic)
60150-0098-02001Encapsulated Impeller (Polypropylene)
70150-0031-01001Rear Housing with 1/2" MPT Outlet & Ceramic Thrust Washer (Polypropylene)
80150-0176-03001Drive Magnet (0.375 Inch Bore) for NEMA Motor
90150-0050-10004#10-32 x 3/4" Long Screw (Stainless)
100150-0051-10004#10 Washer (Stainless)
110150-0070-01001NEMA Motor Bracket (Plastic)
120150-0213-10001Motor, TEFC, 1 Phase, 115/230 V, 50/60 Hz
120150-0089-10001Motor, Explosion Proof, 1 Phase, 115/230 V, 50/60 Hz
A0150-0221-10007M4 x 1.77" Long Screw (Stainless) for IEC Motor
B0150-0178-10001Drive Magnet (9MM) for IEC Motor
C0150-0222-10004M5 x .62" Long Screw (Stainless) for IEC Motor
D0150-0177-10001IEC Motor Bracket (Plastic)
E0150-0218-10001Motor, TEFC, IEC, 3 Phase, 230/460V 50/60 Hz
WEK0150-0148-02001Wet End Kit (Items: 1, 2, 3, 4, 5, 6, 7)
PLM0150-0224-01001NEMA Pump Less Motor (Items: 1, 2, 3, 4, 5, 6 ,7, 8, 9, 10, 11)

Options

Options Image

ItemPart NumberQtyDescription
30750-0987-100010.078" CS x 2.834" ID "O" Ring (Buna N)
30150-0212-100010.078" CS x 2.893" ID "O" Ring (Teflon Encapsulated Viton)
30750-0053-100010.078" CS x 2.834" ID "O" Ring (EPDM)
50130-0147-10001Shaft, 3 Flats (Ceramic)
50939-0003-10001Shaft (316 Stainless)
60150-0098-03001Impeller with Carbon Bushing (Polypropylene)
60150-0098-05001Impeller with Mica Teflon Bushing (Polypropylene)
 0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)
   Flanges (Not Shown)

Motor Information

0150-0213-1000 Motor
Conduit Box, TEFC, IP44
60Hz: 1Ph 0.2HP/0.149kW, 115/230V, 2.6/1.3 AMPS, 3450 RPM
50Hz: 1Ph 0.2HP/0.149kW, 110/220V, 2.4/1.2 AMPS, 2850 RPM

0150-0218-1000 Motor
Conduit Box, TEFC, IP55
60Hz: 3Ph 0.17HP/0.12kW, 230/460V, 0.7/0.35 AMPS, 3450 RPM
50Hz: 3Ph 0.17HP/0.12kW, 230/460V, 0.7/0.35 AMPS, 2850 RPM

Please contact us for alternative motor data

Perfect for Applications Including

Applications for the TE-5C-MD Magnetic Drive Pump include chemical recirculation, chemical transfer, refrigerators, small scrubbers, detergent mixers, computer cooling, carbon arc furnace cooling, and marine air conditioners.

Great for Chemicals Including

The TE-5C-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Nitric Acid, Phosphoric Acid, Potassium Chloride, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Sodium Chloride, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The TE-5C-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-5C-MD. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial TE-5C-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 17 gallons per minute at 4 feet, and its maximum head is 29 Feet (12PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Viton, and Ceramic. The inlet connection is 1 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. There are two standard motors. The first is a 1 Phase 60 hertz 115/230V and 50 hertz 110/220V 0.2 horsepower totally enclosed fan cooled motor. The second is a 3 Phase 60/50HZ 230/460V IEC totally enclosed 0.17 horsepower fan cooled motor. There are performance differences between the hertz options. The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March TE-5C-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-5C-MD is suitable for your application, please contact March Pump.
