TE-7S-MD 1&3 Ph Magnetic Drive Pump

TE-7S-MD 1&3 Ph Magnetic Drive Pump

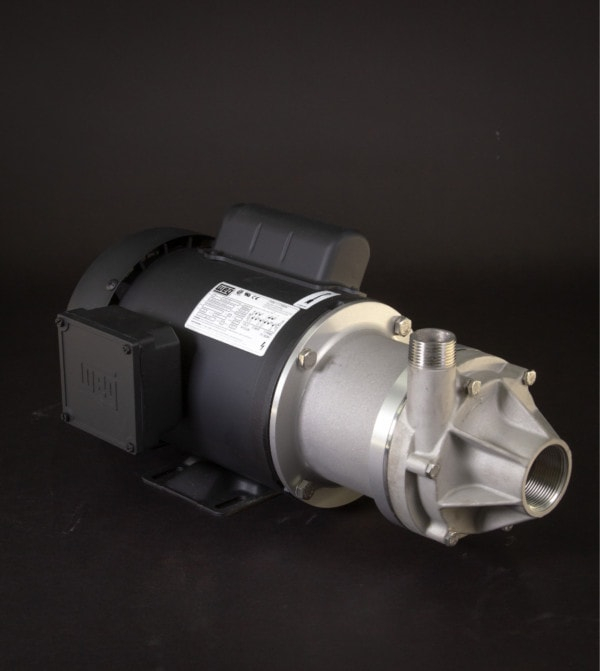

Für eine größere Ansicht klicken Sie auf das Vorschaubild



March Pump’s industrial TE-7S-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 53 gallons per minute at 10 feet, and its maximum head is 57.5 Feet (25PSI)

Unit60Hz
SystemUSMetric
Max Flow53 GPM200 LPM
Max Head57.5 FT17.5 M
Power1 HP0.745 KW

Unit50Hz
SystemUSMetric
Max Flow47.5 GPM180 LPM
Max Head39.4 FT12 M
Power1 HP0.745 KW

Electrical/Air: 1Ph 115/208/230V 60Hz &115/230V 50Hz or 3Ph 208/230/460V 60Hz & 190/380V 50Hz, or 3Ph 575V 60Hz
Inlet: 1-1/2"FPT
Outlet: 1"MPT
  • Wet End: 316 Stainless Steel (Front Housing, Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
  • Additional Motor Options: Available in 1HP, 1.5HP, 1HP Explosion Proof, 1.5HP Explosion Proof, or Washdown
  • Max Internal Pressure: 200 PSI / 13.7 bar
  • Max Liquid Temperature: 250 °F / 121 °C
  • Note: Product image may be different than actual product received.

Part Numbers


P/NPump DescriptionModified With
0155-0173-0300TE-7S-MD 1 Phase 1 HP with Metal Motor BracketStandard
0155-0174-0300TE-7S-MD 3 Phase 1HP with Metal Motor BracketStandard
0155-0036-0300TE-7S-MD 3 Phase 1.5HP with Metal Motor BracketStandard
0155-0036-0400TE-7S-MD 1 Phase Explosion Proof 1HP with Metal Motor BracketStandard
0155-0036-0500TE-7S-MD 3 Phase Explosion Proof 1HP with Metal Motor BracketStandard
0155-0036-0600TE-7S-MD 3 Phase Explosion Proof 1.5HP with Metal Motor BracketStandard
0155-0230-0100TE-7S-MD 3 Phase 575V 1HP with Metal Motor BracketStandard
0155-0304-0400TE-7S-MD 3 Phase 575V 1.5HP with Metal Motor BracketStandard
 The below are modified TE-7S-MD's with Metal Motor Bracket
0155-0173-0312TE-7S-MD 1 Phase 1 HP with Metal Motor BracketTeflon O-Ring
0155-0174-0312TE-7S-MD 3 Phase 1HP with Metal Motor BracketTeflon O-Ring
0155-0036-0312TE-7S-MD 3 Phase 1.5HP with Metal Motor BracketTeflon O-Ring
0155-0036-0412TE-7S-MD 1 Phase Explosion Proof 1HP with Metal Motor BracketTeflon O-Ring
0155-0036-0512TE-7S-MD 3 Phase Explosion Proof 1HP with Metal Motor BracketTeflon O-Ring
0155-0036-0612TE-7S-MD 3 Phase Explosion Proof 1.5HP with Metal Motor BracketTeflon O-Ring
0155-0230-0112TE-7S-MD 3 Phase 575V 1HP with Metal Motor BracketTeflon O-Ring
0155-0304-0412TE-7S-MD 3 Phase 575V 1.5HP with Metal Motor BracketTeflon O-Ring
0155-0173-0332TE-7S-MD 1 Phase 1 HP with Metal Motor BracketMica Teflon Bushing
0155-0174-0332TE-7S-MD 3 Phase 1HP with Metal Motor BracketMica Teflon Bushing
0155-0036-0332TE-7S-MD 3 Phase 1.5HP with Metal Motor BracketMica Teflon Bushing
0155-0036-0432TE-7S-MD 1 Phase Explosion Proof 1HP with Metal Motor BracketMica Teflon Bushing
0155-0036-0532TE-7S-MD 3 Phase Explosion Proof 1HP with Metal Motor BracketMica Teflon Bushing
0155-0036-0632TE-7S-MD 3 Phase Explosion Proof 1.5HP with Metal Motor BracketMica Teflon Bushing
0155-0230-0132TE-7S-MD 3 Phase 575V 1HP with Metal Motor BracketMica Teflon Bushing
0155-0304-0432TE-7S-MD 3 Phase 575V 1.5HP with Metal Motor BracketMica Teflon Bushing

P/NPump DescriptionModified With
0155-0285-0100TE-7S-MD 1 Phase 1 HP with Plastic Motor BracketStandard
0155-0286-0100TE-7S-MD 3 Phase 1HP with Plastic Motor BracketStandard
0155-0287-0100TE-7S-MD 3 Phase 1.5HP with Plastic Motor BracketStandard
0155-0292-0100TE-7S-MD 1 Phase Explosion Proof 1HP with Plastic Motor BracketStandard
0155-0293-0100TE-7S-MD 3 Phase Explosion Proof 1HP with Plastic Motor BracketStandard
0155-0294-0100TE-7S-MD 3 Phase Explosion Proof 1.5HP with Plastic Motor BracketStandard
 The below are modified TE-7S-MD's with Plastic Motor Bracket
0155-0285-0112TE-7S-MD 1 Phase 1 HP with Plastic Motor BracketTeflon O-Ring
0155-0286-0112TE-7S-MD 3 Phase 1HP with Plastic Motor BracketTeflon O-Ring
0155-0287-0112TE-7S-MD 3 Phase 1.5HP with Plastic Motor BracketTeflon O-Ring
0155-0292-0112TE-7S-MD 1 Phase Explosion Proof 1HP with Plastic Motor BracketTeflon O-Ring
0155-0293-0112TE-7S-MD 3 Phase Explosion Proof 1HP with Plastic Motor BracketTeflon O-Ring
0155-0294-0112TE-7S-MD 3 Phase Explosion Proof 1.5HP with Plastic Motor BracketTeflon O-Ring
0155-0285-0132TE-7S-MD 1 Phase 1 HP with Plastic Motor BracketMica Teflon Bushing
0155-0286-0132TE-7S-MD 3 Phase 1HP with Plastic Motor BracketMica Teflon Bushing
0155-0287-0132TE-7S-MD 3 Phase 1.5HP with Plastic Motor BracketMica Teflon Bushing
0155-0292-0132TE-7S-MD 1 Phase Explosion Proof 1HP with Plastic Motor BracketMica Teflon Bushing
0155-0293-0132TE-7S-MD 3 Phase Explosion Proof 1HP with Plastic Motor BracketMica Teflon Bushing
0155-0294-0132TE-7S-MD 3 Phase Explosion Proof 1.5HP with Plastic Motor BracketMica Teflon Bushing

Parts Breakdown

Parts Image

ItemPart NumberQtyDescription
 0155-0173-03001TE-7S-MD, 1 Phase, 1 HP, Complete Standard Pump
 0155-0174-03001TE-7S-MD, 3 Phase, 1 HP, Complete Standard Pump
10155-0014-100061/4"-20 x 2" Long Screw (Stainless)
20155-0036-00101Front Housing (316 Stainless)
30155-0010-100011/8" CS x 4-3/8" OD "O" Ring (Viton)
40155-0009-10001Thrust Washer (Ceramic)
50155-0117-100014.257" Long Shaft (Ceramic)
60155-0112-04001Impeller w/Carbon Bushing (316 Stainless)
70155-0035-00101Rear Housing (316 Stainless)
80155-0130-02001Drive Magnet
91095-0015-00101Motor Bracket (Aluminum)
100155-0017-100043/8”-16 x 3/4” Long Screw (Stainless)
110155-0019-100043/8” ID x 5/8” OD Washer (Stainless)
120155-0173-10001Motor, TEFC, 1 Phase, 115/230V, 50/60 Hz, 1 HP
130155-0174-10001Motor, TEFC, 3 Phase, 230/460V, 50/60 Hz, 1 HP
WEK0155-0318-01001Wet End Kit (Items: 1, 2, 3, 4, 5, 6, 7)
PLM0155-0325-01001Pump Less Motor (Items: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11)

Options

Options Image

ItemPart NumberQtyDescription
30155-0071-100011/8" CS x 4-3/8" OD "O" Ring (Teflon Encapsulated Viton)
30155-0105-100011/8" CS x 4-3/8" OD "O" Ring (EPDM)
40155-0084-10001Thrust Washer (Hastelloy "C")
40155-0149-10001Thrust Washer (Silicon Carbide)
40155-0233-10001Thrust Washer (Zirconium)
50155-0081-100014.257" Long Shaft (Stainless)
50155-0082-100014.257" Long Shaft (Hastelloy "C")
60155-0112-03001Impeller w/Ryton/Teflon/Carbon Bushing (316 Stainless)
60155-0112-08001Impeller w/Mica Teflon Bushing (316 Stainless)
90155-0092-01001Motor Bracket (Plastic)
 0155-0103-10001Motor, TEFC, 3 Phase, 230/460V, 50/60 Hz, 1.5 HP
 0155-0059-10001Motor, Explosion Proof, 1 Phase (Contact March For Additional Specs)
 0155-0060-10001Motor, Explosion Proof, 3 Phase (Contact March For Additional Specs)
  1Motor, Washdown, 1 Phase (Contact March For Additional Specs)
  1Motor, Washdown, 3 Phase (Contact March For Additional Specs)
 0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)
   Flanges (Not Listed)

Motor Information

0155-0173-1000 Motor
Conduit Box, TEFC, IP55
60Hz: 1Ph 1 HP / 0.75 kW, 115-208/230V, 12.6-6.3/6.2 AMPS, 3450RPM
50Hz: 1Ph 1 HP / 0.75 kW, 110/220V, 14.3/7.1 AMPS, 2850RPM

0155-0174-1000 Motor
Conduit Box, TEFC, IP55, VFD Capable
60Hz: 3Ph 1 HP / 0.75 kW, 208-230/460V, 3.3-3.1/1.5 AMPS, 3450RPM
50Hz: 3Ph 1 HP / 0.75 kW, 190/380V, 3.3/1.7 AMPS, 2850RPM (Usable at 220/415V)

Please contact us for alternative motor data

Perfect for Applications Including

Applications for the TE-7S-MD Magnetic Drive Pump include chemical recirculation, chemical transfer, refrigerators, scrubber systems, detergent mixers, computer cooling, carbon arc furnace cooling, silver recovery systems, and marine air conditioners.

Great for Chemicals Including

The TE-7S-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Potassium Chloride, Potassium Hydroxide, Sodium Chloride, Sodium Hydroxide (Caustic Soda), Fresh Water, Salt Water, and many more chemicals. The TE-7S-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-7S-MD. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial TE-7S-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 53 gallons per minute at 10 feet, and its maximum head is 57.5 Feet (25PSI). The standard wet end (the materials that come into contact with the solution) is composed of 316 Stainless Steel, Viton, Carbon, and Ceramic. The inlet connection is 1-1/2 inch female pipe thread, and the outlet is 1 inch male pipe thread. There are two standard motors. The first is a 1 Phase 60 hertz 115/208/230V and 50 hertz 110/220V 1 horsepower totally enclosed fan cooled motor. The second is a 3 Phase 60 hertz 208/230/460V and 50 hertz 190/380V 1 horsepower totally enclosed fan cooled motor. There are performance differences between the hertz options. The maximum internal pressure the pump can tolerate is 200PSI, and the maximum liquid temperature is 250 Fahrenheit or 121 Celsius. The March TE-7S-MD centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-7S-MD is suitable for your application, please contact March Pump.
