TE-8K-MD Magnetically Coupled Pump

TE-8K-MD Magnetically Coupled Pump
Für eine größere Ansicht klicken Sie auf das Vorschaubild

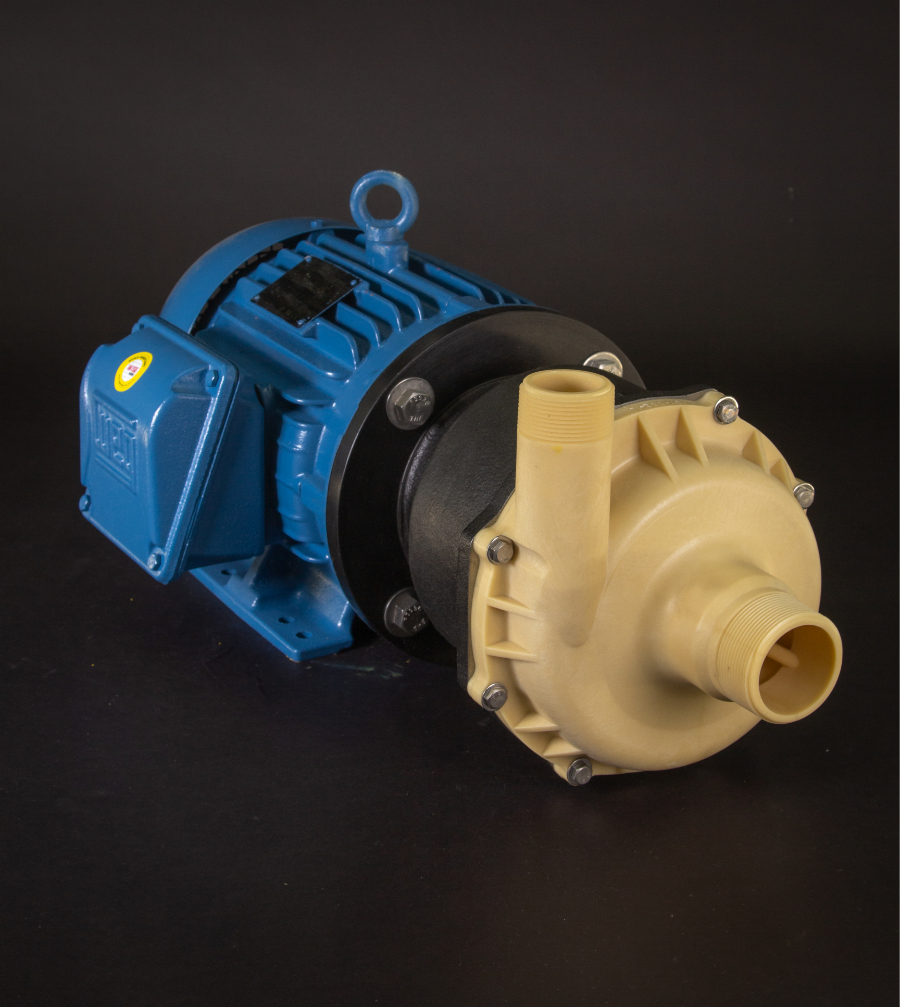

March Pump’s industrial TE-8K-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 120 gallons per minute at 30 feet, and its maximum head is 95 Feet (41PSI).

Unit60Hz
SystemUSMetric
Max Flow120 GPM 454 LPM
Max Head95 FT29 M
Power3 HP2.2 KW
Unit50Hz
SystemUSMetric
Max Flow105 GPM400 LPM
Max Head65 FT20 M
Power3 HP2.2 KW
Electrical/Air: 1Ph 208/230V 60Hz or 3Ph 230/460V 60Hz & 380V 50Hz, or 3Ph 575V 60Hz
Inlet: 2"MPT
Outlet: 1-1/2"MPT
  • Wet End: Glass filled Kynar (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Carbon (Bushing)
  • Additional Motor Options: Available in 3HP, 5HP, 5HP Explosion Proof, 3HP 575V, 5HP 575V, or Washdown
  • Max Internal Pressure: 75 PSI / 5.1 bar
  • Max Liquid Temperature: 200 °F / 93 °C
  • Note: Product image may be different than actual product received.

Part Numbers

P/NPump DescriptionModified With
0157-0008-0200TE-8K-MD 3 Phase 3HP with Metal Motor BracketStandard
0157-0008-0800TE-8K-MD 3 Phase 5HP with Metal Motor Bracket Standard
0157-0008-0400TE-8K-MD 3 Phase 5 HP Explosion Proof with Metal Motor BracketStandard
0157-0102-0100TE-8K-MD 1 Phase 3 HP with Metal Motor BracketStandard
0157-0137-0200TE-8K-MD 3 Phase 575V 3HP with Metal Motor BracketStandard
0157-0126-0100TE-8K-MD 3 Phase 3HP with Plastic Motor BracketStandard
0157-0127-0100TE-8K-MD 3 Phase 5HP with Plastic Motor BracketStandard
0157-0130-0100TE-8K-MD 3 Phase 5HP Explosion Proof with Plastic Motor BracketStandard
The below are modified TE-8K-MD's
0157-0008-0212TE-8K-MD 3 Phase 3HP with Metal Motor BracketTeflon O-Ring
0157-0008-0812TE-8K-MD 3 Phase 5HP with Metal Motor Bracket Teflon O-Ring
0157-0008-0412TE-8K-MD 3 Phase 5 HP Explosion Proof with Metal Motor BracketTeflon O-Ring
0157-0008-0230TE-8K-MD 3 Phase 3HP with Metal Motor BracketCarbon Bushing
0157-0008-0830TE-8K-MD 3 Phase 5HP with Metal Motor Bracket Carbon Bushing
0157-0008-0430TE-8K-MD 3 Phase 5 HP Explosion Proof with Metal Motor BracketCarbon Bushing
0157-0008-0232TE-8K-MD 3 Phase 3HP with Metal Motor BracketMica Teflon Bushing
0157-0008-0832TE-8K-MD 3 Phase 5HP with Metal Motor Bracket Mica Teflon Bushing
0157-0008-0432TE-8K-MD 3 Phase 5 HP Explosion Proof with Metal Motor BracketMica Teflon Bushing

Parts Breakdown

Parts Image
ItemPart NumberQtyDescription
0157-0008-02001TE-8K-MD, 3 Phase, Complete Standard Pump
10157-0014-100081/4"-20 x 1" Long Screw (Stainless)
20157-0023-100081/4" ID x 5/8" OD Washer (Stainless)
30157-0052-10001Pump Housing with 2” MPT Inlet & 1-1/2" MPT Outlet (Glass Filled Kynar)
40157-0011-100010.157” CS x 7.244” ID “O” Ring (Viton)
50157-0001-10001Front Thrust Washer (Ceramic)
60157-0002-10001Shaft (Ceramic)
70157-0050-05001Impeller with Carbon Bushing (Glass Filled Kynar)
80157-0009-10001Rear Thrust Washer (Ceramic)
90157-0053-10001Rear Housing (Glass Filled Kynar)
100157-0005-01001Drive Magnet
110157-0008-00101Motor Bracket (Metal)
120160-0031-100041/2"-13 x 1" Long Screw (Stainless)
130160-0032-100041/2" ID x 1-1/4" OD Washer (Stainless)
130157-0012-10001Motor, TEFC, 3 Phase, 230/460V, 50/60 Hz, 3 HP
WEK0157-0086-01001Wet End Kit (Items: 1, 2, 3, 4, 5, 6, 7, 8, 9)
PLM0157-0096-01001Pump Less Motor (Items: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13)

Options

Options Image
ItemPart NumberQtyDescription
40157-0032-100011/8” CS x 7-1/2” ID “O” Ring (Teflon Encapsulated Viton)
40157-0058-100010.157” CS x 7.244” ID “O” Ring (EPDM)
50157-0043-10001Front Thrust Washer (Hastelloy C)
60157-0045-10001Shaft (Hastelloy C)
60157-0099-10001Shaft, 3 Flats (Ceramic)
60157-0150-10001Shaft (316 Stainless)
70157-0050-02001Impeller with Ryton Bushing (Glass Filled Kynar)
70157-0050-07001Impeller with Mica Teflon Bushings (Glass Filled Kynar)
80157-0047-10001Rear Thrust Washer (Hastelloy C)
110157-0100-10001Motor Bracket (Plastic)
140157-0065-10001Motor, TEFC, 3 Phase, 230/460V, 50/60 Hz, 5 HP
0157-0042-10001Motor, Explosion Proof, 3 Phase (Contact March For Additional Specs)
1Motor, Washdown, 3 Phase (Contact March for Additional Specs)
0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)

Motor Information

0157-0012-1000 Motor
Conduit Box, TEFC, IP55, VFD Capable
60Hz: 3Ph 3 HP / 2.2 kW, 230/460V, 7.26/3.63 AMPS, 3450 RPM (Usable at 208V)
50Hz: 3Ph 3 HP / 2.2 kW, 380V, 4.3 AMPS, 2850 RPM (Usable at 190/220V)

0157-0065-1000 Motor
Conduit Box, TEFC, IP55, VFD Capable
60Hz: 3Ph 5 HP / 3.7 kW, 230/460V, 11.8/5.9 AMPS, 3450 RPM (Usable at 208V)
50Hz: 3Ph 5 HP / 3.7 kW, 380V, 7.14 AMPS, 2850 RPM (Usable at 190/220V)

Please contact us for alternative motor data

Perfect for Applications Including

Applications for the TE-8K-MD Magnetic Drive Pump include chemical recirculation, chemical transfer, deionized water systems, scrubber systems, detergent mixers, computer cooling, waste treatment plants, and plating operations.

Great for Chemicals Including

The TE-8K-MD has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Hydrofluoric Acid, Hydrogen Peroxide, Nitric Acid, Phosphoric Acid, Potassium Chloride, Sodium Chloride, Sodium Hypochlorite, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The TE-8K-MD may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-8K-MD. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial TE-8K-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 120 gallons per minute at 30 feet, and its maximum head is 95 Feet (41PSI). The standard wet end (the materials that come into contact with the solution) is composed of glass filled Kynar (PVDF), Viton, Carbon, and Ceramic. The inlet connection is 2 inch male pipe thread, and the outlet is 1-1/2 inch male pipe thread. There are two standard motors. The first is a 208/230V 60 hertz 3 horsepower totally enclosed fan cooled motor. The second is a 3 Phase 60 hertz 208/230/460 and 50 hertz 190/220/380V 3 horsepower totally enclosed fan cooled motor. There are performance differences between the hertz options. The maximum internal pressure the pump can tolerate is 75PSI, and the maximum liquid temperature is 200 Fahrenheit or 93 Celsius. The March TE-8K-MD centrifugal magnetic drive pump is capable of handling mildly, or highly corrosive chemicals, acids, and solvents. To determine if the March TE-8K-MD is suitable for your application, please contact March Pump.
