TE-8S-MD With Flanges Magnetic Drive Pump

Für eine größere Ansicht klicken Sie auf das Vorschaubild

March Pump’s industrial TE-8S-MD with Flanges is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 120 gallons per minute at 20 feet, and its maximum head is 90 Feet (39PSI).

Request Help
Pump Curves
Parts Breakdown

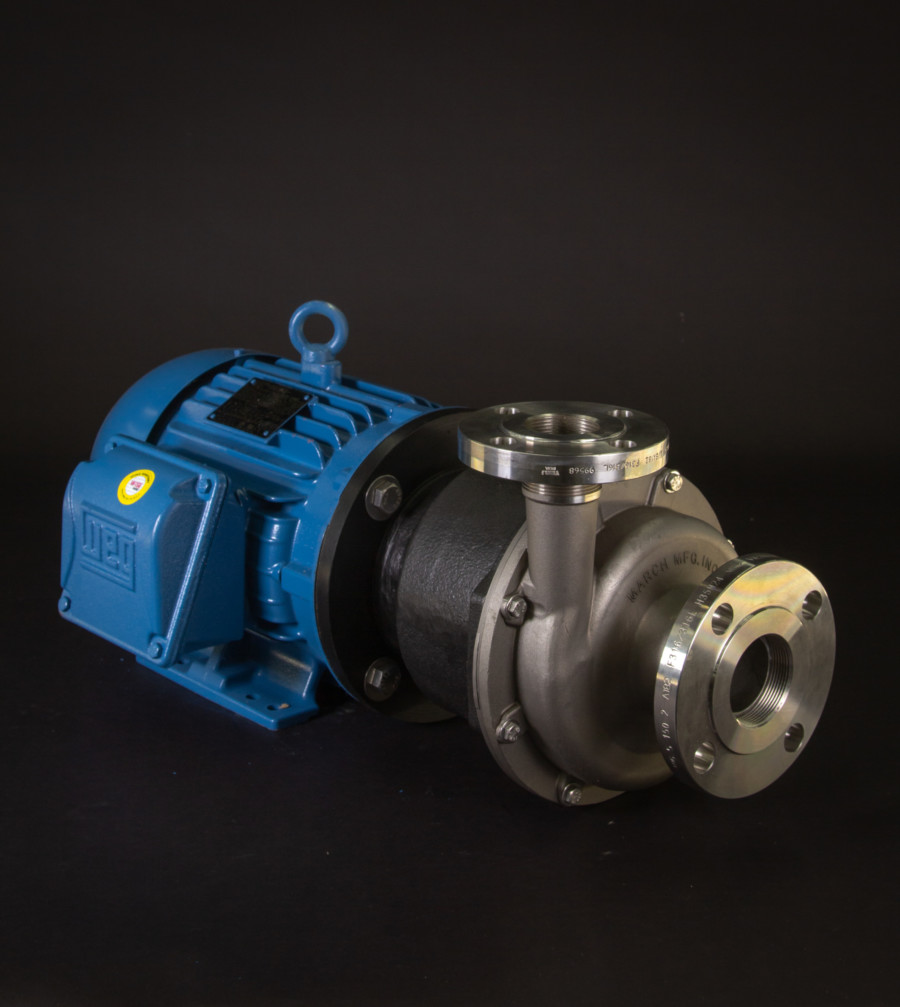

Picture of March Pump TE-8S-MD with Flanges

Unit	60Hz
System	US	Metric
Max Flow	120 GPM	454 LPM
Max Head	90 FT	27.4 M
Power	5 HP	3.7 KW

Unit	50Hz
System	US	Metric
Max Flow	105 GPM	400 LPM
Max Head	63 FT	19.3 M
Power	5 HP	3.7 KW

Electrical/Air: 1Ph 208/230V 60Hz or 3Ph 230/460V 60Hz & 380V 50Hz, or 3Ph 575V 60Hz

Inlet: 2" ANSI Class 150 Flange

Outlet: 1-1/2" ANSI Class 150 Flange

Wet End: 316 Stainless Steel (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers) Carbon (Bushing)
Additional Motor Options: Available in 5HP Explosion Proof, 575V, or Washdown
Max Internal Pressure: 200 PSI / 13.78 bar
Max Liquid Temperature: 250 °F / 121 °C
Note:: Product image may be different than actual product received.

Pump Curves & General Installation Sheets

Part Numbers

P/N	Pump Description	Modified With
0157-0030-0170	TE-8S-MD 3 Phase 5HP With Flanges and Metal Motor Bracket	Standard
	The below are modified TE-8S-MD's with Flanges

Parts Breakdown

Item	Part Number	Qty	Description
	0157-0030-1000	1	TE-8S-MD, 3 Phase, Complete Standard Pump with Flanges
1	0157-0036-1000	8	1/4"-20 x 1-1/4" Long Screw (Stainless)
2	0157-0023-1000	8	1/4" ID x 5/8" OD Washer (Stainless)
3	0157-0083-0100	1	Pump Housing with Flanges & Item 9 (Rear Housing) must be purchased together for matching set. (316 Stainless)
4	0157-0011-1000	1	0.157” CS x 7.244” ID “O” Ring (Viton)
5	0157-0001-1000	1	Front Thrust Washer (Ceramic)
6	0157-0002-1000	1	Shaft (Ceramic)
7	0157-0029-0500	1	Impeller with Carbon Bushing (316 Stainless)
8	0157-0009-1000	1	Rear Thrust Washer (Ceramic)
9	0157-0115-1000	1	Rear Housing & Item 3 (Pump Housing) must be purchased together for matching set. (316 Stainless)
10	0157-0005-0100	1	Drive Magnet
11	0157-0008-0010	1	Motor Bracket (Metal)
12	0160-0031-1000	4	1/2"-13 x 1" Long Screw (Stainless)
13	0160-0032-1000	4	1/2" ID x 1-1/4" OD Washer (Stainless)
13	0157-0065-1000	1	Motor, TEFC, 3 Phase, 230/460 V, 50/60 Hz, 5 HP

Options

Item	Part Number	Qty	Description
4	0157-0032-1000	1	1/8” CS x 7-1/2” ID “O” Ring (Teflon Encapsulated Viton)
4	0157-0058-1000	1	0.157” CS x 7.244” ID “O” Ring (EPDM)
5	0157-0043-1000	1	Front Thrust Washer (Hastelloy C)
6	0157-0045-1000	1	Shaft (Hastelloy C)
6	0157-0099-1000	1	Shaft, 3 Flats (Ceramic)
6	0157-0150-1000	1	Shaft (316 Stainless)
7	0157-0029-0200	1	Impeller with Ryton Bushing (316 Stainless)
7	0157-0029-0700	1	Impeller with Mica Teflon Bushing (316 Stainless)
8	0157-0047-1000	1	Rear Thrust Washer (Hastelloy C)
11	0157-0100-1000	1	Motor Bracket (Plastic)
	0750-1011-1000	1	Stainless Steel Tag w/Customer's Desired Information (Not Shown)

Dimensional Drawings

Dimensional Drawing TE-8S-MD with Flanges

Please Contact us for 3D drawings and drawings of pumps with alternative motors.

Motor Information

0157-0065-1000 Motor
Conduit Box, TEFC, IP55, VFD Capable
60Hz: 3Ph 5 HP / 3.7 kW, 230/460V, 11.8/5.9AMPS, 3450RPM (Usable at 208V)
50Hz: 3Ph 5 HP / 3.7 kW, 380V, 7.14AMPS, 2850RPM (Usable at 190/220V)

Please contact us for alternative motor data

Perfect for Applications Including

Applications for the TE-8S-MD with flanges Magnetic Drive Pump include chemical recirculation, chemical transfer, deionized water systems, scrubber systems, detergent mixers, computer cooling, waste treatment plants, and plating operations.

Great for Chemicals Including

The TE-8S-MD with flanges has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Potassium Chloride, Potassium Hydroxide, Sodium Chloride, and Sodium Hydroxide (Caustic Soda), Fresh Water, Salt Water, and many more chemicals. The TE-8S-MD with flanges may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-8S-MD. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial TE-8S-MD with flanges is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 120 gallons per minute at 20 feet, and its maximum head is 90 Feet (39PSI). The standard wet end (the materials that come into contact with the solution) is composed of 316 Stainless Steel, Viton, Carbon, and Ceramic. The inlet connection is 2 inch male pipe thread, and the outlet is 1-1/2 inch male pipe thread. There are two standad motors. The first motor is a 1 Phase 60 hertz 208/230V 5 horsepower totally enclosed fan cooled motor. The second is a 3 Phase 60 hertz 208/230/460 and 50 hertz 190/220/380V 5 horsepower totally enclosed fan cooled motor. There are performance differences between the hertz options. The maximum internal pressure the pump can tolerate is 200PSI, and the maximum liquid temperature is 250 Fahrenheit or 121 Celsius. The March TE-8S-MD with flanges centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-8S-MD with flanges is suitable for your application, please contact March Pump.
