Perfect for Applications Including
Applications for the 809-BR-HS-C Magnetic Drive Pump include hot water systems and solar heating.
Great for Chemicals Including
The 809-BR-HS-C has pumped Cutting Oils, Ethylene Glycol, Hot Water and Salt Water. The 809-BR-HS-C may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the 809-BR-HS-C. Chemical Resistance Chart
Summary Paragraph

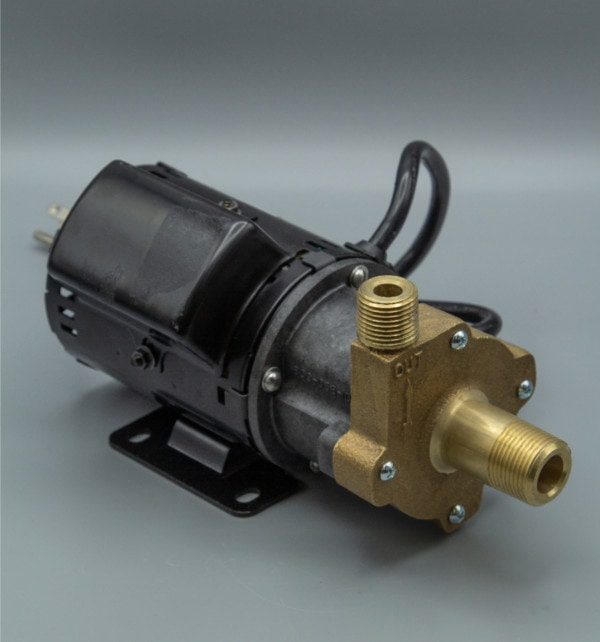

March Pump’s industrial 809-BR-HS-C is an American seal-less centrifugal magnetic drive pump ideal for applications such as hot water systems. It is capable of generating a maximum flow of 7.5 gallons per minute at 2 feet, and its maximum head is 12 Feet (5PSI). The standard wet end (the materials that come into contact with the solution) is composed of Bronze, Stainless Steel, Teflon, Silicone and Ryton/Teflon/Glass. The inlet connection is 0.75 male pipe thread, and the outlet is 0.5 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.4 Horsepower fan cooled motor, which can be run on 60 hertz on 115V or 50 hertz and 60 hertz on 230V (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 150PSI, and the maximum liquid temperature is 250 Fahrenheit or 121 Celsius. To determine if the March 809-BR-HS-C is suitable for your application, please contact March Pump.
