Perfect for Applications Including
Applications for the 809-PL-HS-C 24V Brushless Magnetic Drive Pump include hot water systems, solar heating, and fryers.
Great for Chemicals Including
The 809-PL-HS-C 24V Brushless has pumped Cutting Oils, Ethylene Glycol, Hot Water, Hot Wort and Salt Water. The 809-PL-HS-C 24V Brushless may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the 809-PL-HS-C 24V Brushless. Chemical Resistance Chart

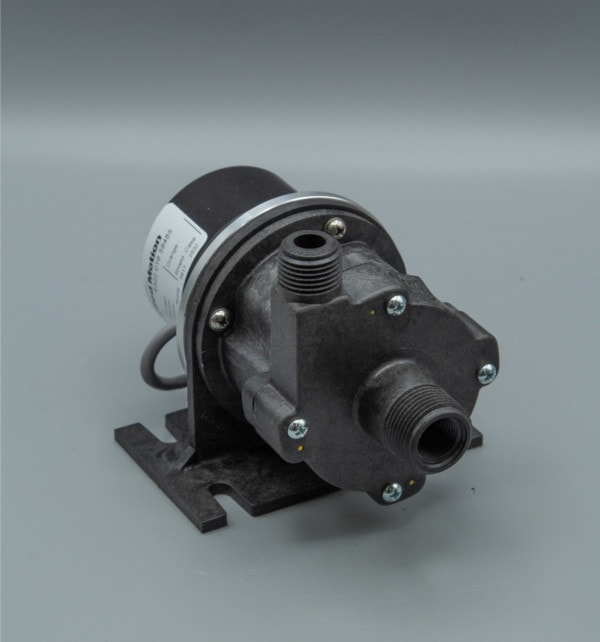

March Pump’s industrial 809-PL-HS-C 24V Brushless is an American seal-less centrifugal magnetic drive pump ideal for applications such as home brewing and hot water systems. It is capable of generating a maximum flow of 7.5 gallons per minute at 2 feet, and its maximum head is 25 Feet (10.8PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polysulfone, Stainless Steel, Teflon, Silicone and Ryton/Teflon/Glass. The inlet connection is 0.375 inch female pipe thread and 0.75 inch male pipe thread, and the outlet is 0.5 inch male pipe thread. The standard motor is a 0.04 Horsepower DC 24V Brushless Motor. The 24 Volt motor has an operating range from 14 to 30 Volts. The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 250 Fahrenheit or 121 Celsius. To determine if the March 809-PL-HS-C 24V Brushless is suitable for your application, please contact March Pump.
