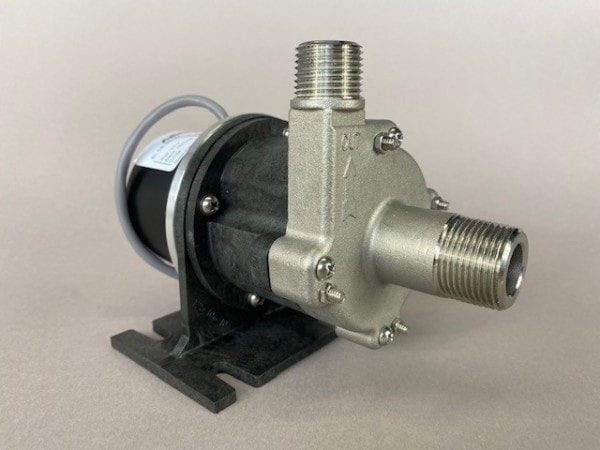

809-SS-HS-C 24V Brushless Mag Drive Pump

809-SS-HS-C 24V Brushless Mag Drive Pump
For a larger view click on the thumbnail


Max Flow7.5 GPM 28.3 LPM
Max Head25 FT7.6 M
Power0.04 HP0.029 KW
Max Flow7.5 GPM28.3 LPM
Max Head25 FT7.6 M
Power0.04 HP0.029 KW
Electrical/Air: 24V (Voltage Range 14-30)
Inlet: 3/4"MPT
Outlet: 1/2"MPT
  • Wet End: Stainless Steel (Front and Rear Housing, Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)
  • Max Internal Pressure: 150 PSI / 10.3 bar
  • Max Liquid Temperature: 250 °F / 121 °C
  • Note: Product image may be different than actual product received.

Part Numbers

P/NPump DescriptionModified With
0809-0177-0600809-SS-HS-C Brushless 24V Standard
The below are modified 809-SS-HS-C-Brushless's

Parts Breakdown

Parts Image
ItemPart NumberQtyDescription
0809-0177-06001809-SS-HS-C 24V DC Complete Standard Pump
10809-0205-10004#8-32 x 1" Long Housing Screw (Stainless)
20809-0150-00101Pump Housing with Center Inlet (Stainless)
30809-0165-100010.070" CS x 2.441" ID "O" Ring (Silicone)
40809-0043-10001Thrust Washer (Teflon)
50809-0214-10001Left Hand Thread Shaft (Stainless) Check shaft type before ordering replacement parts.
60809-0005-020011-11/16" Diameter Impeller (Ryton/Teflon/Glass)
70809-0012-10001Rear Housing (Stainless)
80809-0205-10004#8-32 x 1" Long Rear Housing Screw (Stainless)
90125-0083-02001Drive Magnet with 6mm Bore
100210-0036-10004#8-32 x 3/4" Long Screw (Stainless)
110620-0010-10004#8 Lock Washer (Stainless)
120809-0058-10001Motor Bracket (Plastic)
130125-0106-10001Base (Plastic)
140125-0128-10001Motor, 24V DC Brushless, 3650 RPM
150991-0004-10004#8-32 Hex Nut (Stainless)


Options Image
ItemPart NumberQtyDescription
0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)

Motor Information

0125-0128-1000 Motor
11.5″ Leads
24V, 2.1 AMPS, 3650 RPM, 0.04HP / 0.03kW
Voltage Range 14-30V

Please contact us for alternative motor data

Perfect for Applications Including

Applications for the 809-SS-HS-C 24V Brushless Magnetic Drive Pump include hot water systems, solar heating, and fryers.

Great for Chemicals Including

The 809-SS-HS-C 24V Brushless has pumped Cutting Oils, Ethylene Glycol, Hot Water, Hot Wort and Salt Water.  The 809-SS-HS-C 24V Brushless may have been modified to handle these chemicals.  This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water.  Please contact March Pump to review your application before using the 809-SS-HS-C 24V Brushless. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial 809-SS-HS-C 24V Brushless is an American seal-less centrifugal magnetic drive pump ideal for applications such as home brewing and hot water systems. It is capable of generating a maximum flow of 7.5 gallons per minute at 2 feet, and its maximum head is 25 Feet (10.8PSI). The standard wet end (the materials that come into contact with the solution) is composed of Stainless Steel, Teflon, Silicone and Ryton/Teflon/Glass. The inlet connection is 0.75 inch male pipe thread, and the outlet is 0.5 inch male pipe thread. The standard motor is a 0.04 Horsepower DC 24V Brushless Motor.  The 24 Volt motor has an operating range from 14 to 30 Volts.  The maximum internal pressure the pump can tolerate is 150PSI, and the maximum liquid temperature is 250 Fahrenheit or 121 Celsius. To determine if the March 809-SS-HS-C 24V Brushless is suitable for your application, please contact March Pump.
