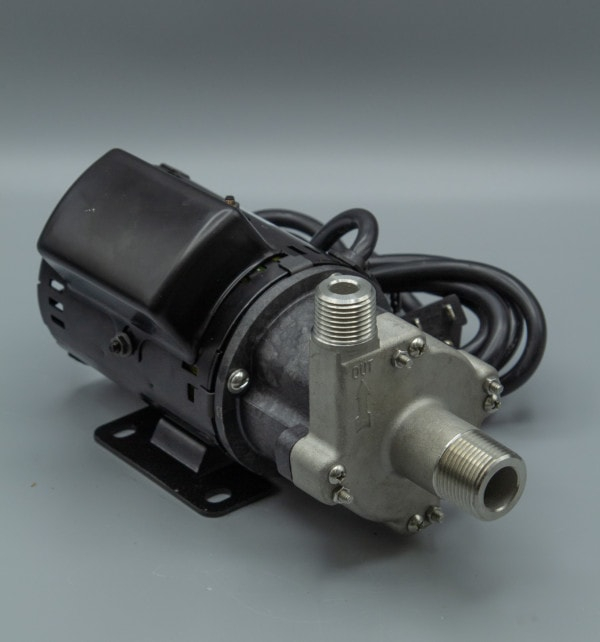

809-SS-HS-C Mag Drive Pump

809-SS-HS-C Mag Drive Pump
For a larger view click on the thumbnail



March Pump’s industrial 809-SS-HS-C is an American seal-less centrifugal magnetic drive pump ideal for applications such as home brewing and hot water systems. It is capable of generating a maximum flow of 7.5 gallons per minute at 2 feet, and its maximum head is 12 Feet (5PSI).

Unit60Hz
SystemUSMetric
Max Flow7.5 GPM 28.4 LPM
Max Head12.1 FT3.7 M
Power0.04 HP0.029 KW
Unit50Hz
SystemUSMetric
Max Flow6.9 GPM26.4 LPM
Max Head8.2 FT2.5 M
Power0.04 HP0.029 KW
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 3/4"MPT
Outlet: 1/2"MPT
  • Wet End: Stainless Steel (Front and Rear Housing, Shaft), Teflon (Thrust Washer), Silicone (O-Ring), Ryton/Teflon/Glass (Impeller)
  • Max Internal Pressure: 150 PSI / 10.3 bar
  • Max Liquid Temperature: 250 °F / 121 °C

Part Numbers

P/NPump DescriptionModified With
0809-0177-0100809-SS-HS-C 115VStandard
0809-0177-0200809-SS-HS-C 230V Standard
The below are modified 809-SS-HS-C's

Parts Breakdown

Parts Image
ItemPart NumberQtyDescription
0809-0177-01001809-SS-HS-C, 1 Phase, 115V, Complete Standard Pump
0809-0177-02001809-SS-HS-C, 1 Phase, 230V, Complete Standard Pump
10809-0205-10004#8-32 x 1" Long Housing Screw (Stainless)
20809-0150-00101Pump Housing with Center Inlet (Stainless)
30809-0165-100010.070" CS x 2.441" ID "O" Ring (Silicone)
40809-0043-10001Thrust Washer (Teflon)
50809-0214-10001Left Hand Thread Shaft (Stainless) Check shaft type before ordering replacement parts.
60809-0005-020011-11/16" Diameter Impeller (Ryton/Teflon/Glass)
70809-0012-10001Rear Housing (Stainless)
80809-0205-10004#8-32 x 1" Long Rear Housing Screw (Stainless)
90125-0083-01001Drive Magnet
100135-0040-10004#8-32 x 3/8" Long Screw (Stainless)
110858-0004-10004#8 Washer (Stainless)
120809-0058-10001Motor Bracket (Plastic)
130809-0218-10001Motor, 1 Phase, 115V, 50/60 Hz
140809-0124-10001Motor, 1 Phase, 230V, 50/60 Hz
150991-0004-10004#8-32 Hex Nut (Stainless)



Options

Options Image
ItemPart NumberQtyDescription
0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)

Motor Information

0809-0218-1000 Motor
6 Foot Cord and Plug
60Hz: 1Ph 115V 0.04HP / 0.029kW, 0.5 AMPS, 3450 RPM
50Hz: 1Ph 115V 0.04HP / 0.029kW, 0.4 AMPS, 2850 RPM

0809-0124-1000 Motor
3 Foot Cord
60Hz: 1Ph 230V 0.04HP / 0.029kW, 0.3 AMPS, 3450 RPM
50Hz: 1Ph 230V 0.04HP / 0.029kW, 0.3 AMPS, 2850 RPM

Please contact us for alternative motor data

Perfect for Applications Including

Applications for the 809-SS-HS-C Magnetic Drive Pump include hot water systems, solar heating, and fryers.

Great for Chemicals Including

The 809-SS-HS-C has pumped Cutting Oils, Ethylene Glycol, Hot Water, Hot Wort and Salt Water. The 809-SS-HS-C may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the 809-SS-HS-C. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial 809-SS-HS-C is an American seal-less centrifugal magnetic drive pump ideal for applications such as home brewing and hot water systems. It is capable of generating a maximum flow of 7.5 gallons per minute at 2 feet, and its maximum head is 12 Feet (5PSI). The standard wet end (the materials that come into contact with the solution) is composed of Stainless Steel, Teflon, Silicone and Ryton/Teflon/Glass. The inlet connection is 0.75 male pipe thread, and the outlet is 0.5 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.4 Horsepower fan cooled motor, which can be run on 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 150PSI, and the maximum liquid temperature is 250 Fahrenheit or 121 Celsius. To determine if the March 809-SS-HS-C is suitable for your application, please contact March Pump.
