830-SS Magnetic Drive Pump

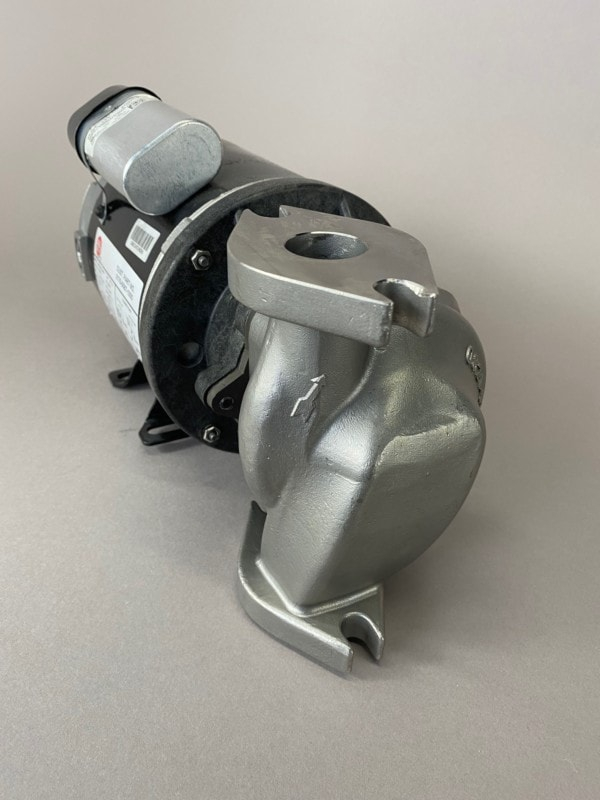

830-SS Magnetic Drive Pump
Für eine größere Ansicht klicken Sie auf das Vorschaubild



March Pump’s industrial 830-SS is an American seal-less centrifugal magnetic drive pump ideal for applications such as hot water systems. It is capable of generating a maximum flow of 30 gallons per minute at 6 feet, and its maximum head is 30.5 Feet (13PSI).

Unit60Hz
SystemUSMetric
Max Flow30 GPM 113.5 LPM
Max Head30.5 FT9.3 M
Power0.2 HP0.149 KW
Unit50Hz
SystemUSMetric
Max Flow22 GPM83.2 LPM
Max Head21.3 FT6.5 M
Power0.2 HP0.149 KW
Electrical/Air: 115/230V 50/60Hz
Inlet: Flange
Outlet: Flange
  • Wet End: 304 Stainless Steel (Front Housing, Rear Housing, Shaft), Ceramic (Thrust Washer), Ryton/Teflon/Carbon (Impeller), Nitrile/Fibre (Gasket)
  • Max Internal Pressure: 150 PSI / 10.3 bar
  • Max Liquid Temperature: 250 °F / 121 °C
  • Note: Product image may be different than actual product received.

Part Numbers

P/NPump DescriptionModified With
0175-0094-0100830-SSStandard
The below are modified 830-SS's

Parts Breakdown

Parts Image
ItemPart NumberQtyDescription
0175-0094-01001830-SS, 1 Phase, Complete Standard Pump
10821-0116-00101Flanged Pump Housing (304 Stainless Steel)
20821-0079-10001Thrust Washer (Ceramic)
30821-0036-10001Shaft (Stainless)
40175-0073-02001Impeller with Bushing (Ryton/Teflon/Carbon)
51043-0002-100012.843" ID x 0.047" Thick Gasket (Nitrile/Fibre)
60821-0035-01001Rear Housing (Stainless)
70821-0044-00011Housing Connecting Ring (Aluminum)
81043-0009-100041/4"-20 x 3/4" Long Flat Head Connecting Screw (Steel)
90175-0027-10001Motor Bracket (Plastic)
100155-0021-100041/2" OD Washer (Stainless)
110804-0052-100041/4"-20 x 3/4" Long Socket Head Housing Screw (Steel)
120151-0061-02001Drive Magnet
130410-0039-10004#8-32 Hex Nut (Nickel Plated Brass)
140620-0010-10004#8 Lock Washer (Stainless)
150175-0087-10001Motor, 1 Phase, 115/230V, 50/60 Hz

Options

Options Image
ItemPart NumberQtyDescription
A0804-0054-100047/16"-14 x 1-1/2" Long Hex Head Screw (Steel)
B0821-0105-10002Flange Gasket (EPDM)
C0821-0069-000023/4" Flange (Bronze)
C0804-0047-000023/4" Flange (Steel)
C0821-0065-000021" Flange (Bronze)
C0821-0045-000021" Flange (Steel)
C0821-0072-000021-1/4" Flange (Bronze)
C0821-0048-000021-1/4" Flange (Steel)
C0821-0066-000021-1/2" Flange (Bronze)
C0821-0049-000021-1/2" Flange (Cast Iron)
D0804-0055-100047/16"-14 Hex Nut (Steel)
0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)

Motor Information

0175-0087-1000 Motor
Conduit Box, IP22
60Hz: 1Ph 0.2HP / 0.15kW, 115/230V, 2.7/1.46 AMPS, 3450 RPM
50Hz: 1Ph 0.2HP / 0.15kW, 115/230V, 2.9/1.48 AMPS, 2850 RPM

Please contact us for alternative motor data

Perfect for Applications Including

Applications for the 830-SS Magnetic Drive Pump include hot water and hot oil systems.

Great for Chemicals Including

The 830-SS has pumped Cutting Oils, Ethylene Glycol, Hot Water and Salt Water. The 830-SS may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the 830-SS. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial 830-SS is an American seal-less centrifugal magnetic drive pump ideal for applications such as hot water systems. It is capable of generating a maximum flow of 30 gallons per minute at 6 feet, and its maximum head is 30.5 Feet (13PSI). The standard wet end (the materials that come into contact with the solution) is composed of 304 Stainless Steel, Ceramic, Ryton/Teflon/Carbon, and Nitrile/Fibre. The inlet connection is a flange, and the outlet is a flange. The standard motor is a 1 Phase 115/230V 0.2 Horsepower fan cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 150PSI, and the maximum liquid temperature is 250 Fahrenheit or 121 Celsius. To determine if the March 830-SS is suitable for your application, please contact March Pump.
