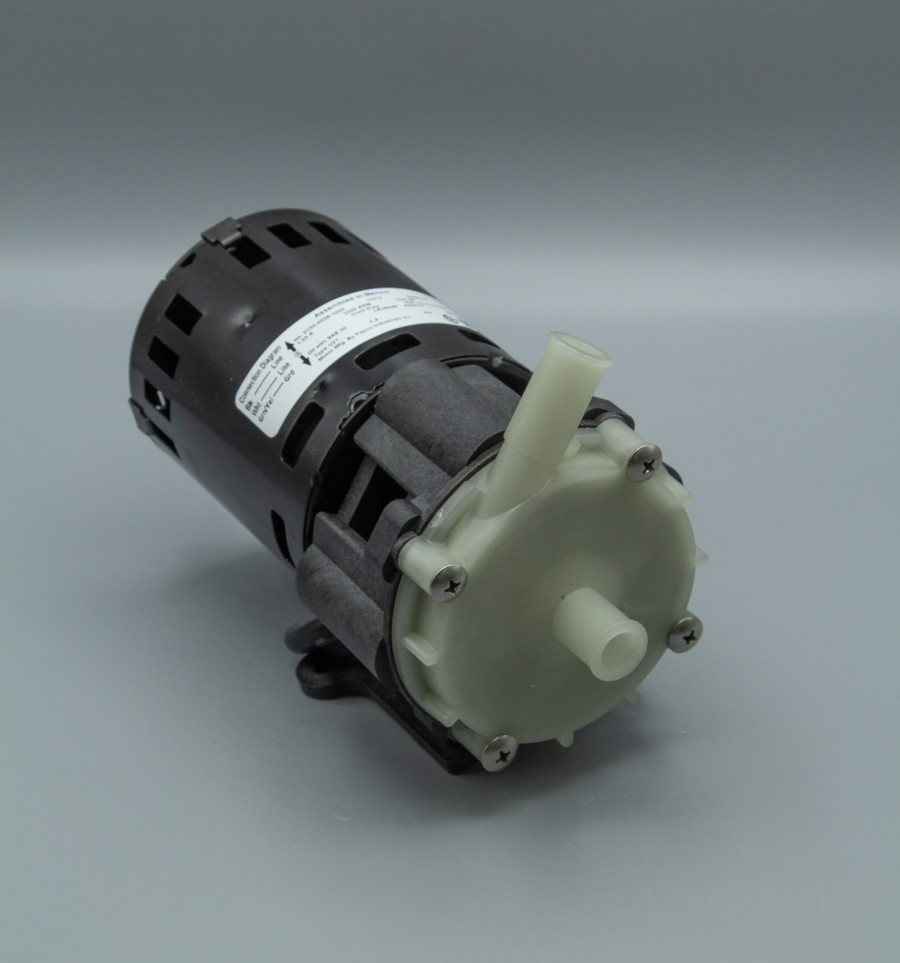

MDX-3-5/8 Magnetic Drive Pump

MDX-3-5/8 Magnetic Drive Pump
For a larger view click on the thumbnail



March Pump’s industrial MDX-3-5/8 is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 8 gallons per minute at 1 foot, and its maximum head is 19 Feet (8PSI).

Unit60Hz
SystemUSMetric
Max Flow8.5 GPM 32.2 LPM
Max Head19 FT5.8 M
Power0.04 HP0.03 KW
Unit50Hz
SystemUSMetric
Max Flow7.9 GPM30 LPM
Max Head13.1 FT4 M
Power0.04 HP0.03 KW
Electrical/Air: 115V 50/60Hz or 230V 50/60Hz
Inlet: 5/8"OD
Outlet: 5/8"OD
  • Wet End: Polypropylene (Front Housing and Impeller), Carbon filled Kynar (Rear Housing, Shaft), Ryton (Thrust Washer), Buna N (O-Ring), Stainless Steel (Screw) Ceramic Magnet
  • Max Internal Pressure: 50 PSI / 3.4 bar
  • Max Liquid Temperature: 190 °F / 87 °C
  • Note: Product image may be different than actual product received.

Part Numbers

P/NPump DescriptionModified With
0135-0006-0300MDX-3-5/8 115VStandard
0135-0163-0400MDX-3-5/8 230VStandard
The below are modified MDX-3-5/8's

Parts Breakdown

Parts Image
ItemPart NumberQtyDescription
0135-0006-03001MDX-3-5/8, 1 Phase, 115V, Complete Standard Pump
0135-0163-04001MDX-3-5/8, 1 Phase, 230V, Complete Standard Pump
10135-0180-10004#10-32 x 1” Long Screw (Stainless)
20135-0117-10001Front Housing with 5/8” OD Inlet & Outlet (Polypropylene)
30135-0007-100011/16” CS x 3” OD “O” Ring (Buna N)
40135-0042-10001#8-32 x 1/4” Long Screw (Stainless)
50802-0057-10001Thrust Washer (Ryton/Teflon/Carbon)
60135-0043-010012.062 Dia. Impeller with Bare Ceramic Magnet (Polypropylene)
70802-0043-10001Rear Housing (Kynar/Carbon Filled)
80135-0126-01001Drive Magnet
90618-0027-10004#8-32 x 5/8” Long Screw (Stainless)
100620-0010-10004#8 Lock Washer (Stainless)
110135-0168-01001Motor Bracket (Plastic)
120135-0036-10001Motor, 1 Phase, 115V, 50/60 Hz, 3450 RPM
120135-0037-10001Motor, 1 Phase, 230V, 50/60 Hz, 3450 RPM

Options

Options Image
ItemPart NumberQtyDescription
30135-0023-100011/16” CS x 3” OD “O” Ring (Viton)
30135-0134-100011/16” CS x 3” OD “O” Ring (Teflon Encapsulated Viton)
30750-0053-100011/16” CS x 3” OD “O” Ring (EPDM)
60135-0130-020012.062” Dia. Encapsulated Impeller (Polypropylene)
0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)

Motor Information

0135-0036-1000
3 Foot Cord
60Hz: 1Ph 115V 0.04HP/0.03kW, 1.55 AMPS, 3450 RPM
50Hz: 1Ph 115V 0.04HP/0.03kW, 1.55 AMPS, 2850 RPM

0135-0037-1000
3 Foot Cord
60Hz: 1Ph 230V 0.04HP/0.03kW, 0.7 AMPS, 3450 RPM
50Hz: 1Ph 230V 0.04HP/0.03kW, 0.7 AMPS, 2850 RPM

Please contact us for alternative motor data

Perfect for Applications Including

Applications for the MDX-3-5/8 Magnetic Drive Pump include etching equipment, photographic processing equipment, ice flakers, plate processors, and marine air conditioning.

Great for Chemicals Including

The MDX-3-5/8 has pumped Acetic Acid, Ammonium Hydroxide, Potassium Carbonate, Sodium Chloride, Sodium Cyanide, Sodium Nitrate, Zinc Sulfate, Fresh Water, Salt Water, and many more chemicals. The MDX-3-5/8 may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the MDX-3-5/8. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial MDX-3-5/8 is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 8 gallons per minute at 1 foot, and its maximum head is 19 Feet (8PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, carbon filled Kynar (PVDF), Ryton Buna N, Stainless Steel, and Ceramic Magnet. The inlet connection is 5/8 inch smooth, and the outlet is 5/8 inch smooth. The standard motor is a 1 Phase 115V or 230V 0.04 Horsepower fan cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The maximum internal pressure the pump can tolerate is 50PSI, and the maximum liquid temperature is 190 Fahrenheit or 87 Celsius. The March MDX-3-5/8 centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March MDX-3-5/8 is suitable for your application, please contact March Pump.
