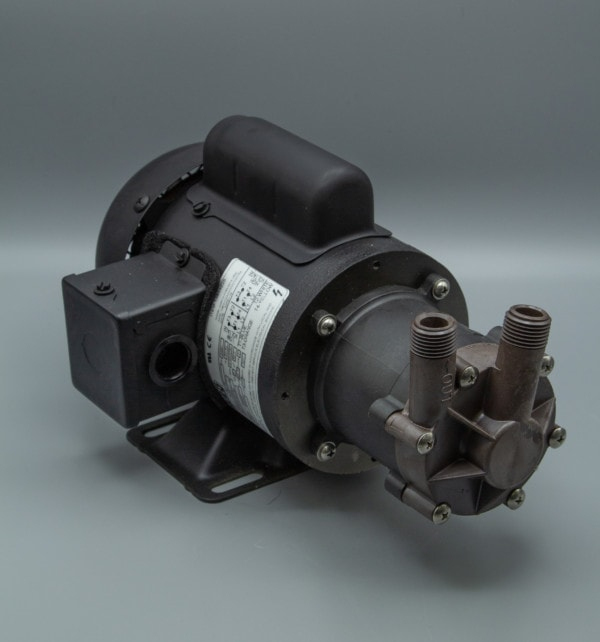

TE-MDX-MT3 Magnetic Drive Pump

TE-MDX-MT3 Magnetic Drive Pump
Für eine größere Ansicht klicken Sie auf das Vorschaubild



March Pump’s industrial TE-MDX-MT3 is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 10 gallons per minute at 1 foot, and its maximum head is 17 Feet (7PSI).

Unit60Hz
SystemUSMetric
Max Flow10 GPM 37.9 LPM
Max Head17 FT5.1 M
Power0.066 HP0.05 KW
Unit50Hz
SystemUSMetric
Max Flow9.2 GPM35 LPM
Max Head12.1 FT3.7 M
Power0.066 HP0.05 KW
Electrical/Air: 1Ph 115/230V 50/60Hz
Inlet: 1/2"MPT
Outlet: 1/2"MPT
  • Wet End: Ryton (Front and Rear Housing, Impeller), Ceramic (Shaft, Thrust Washer), Viton (O-Ring)
  • Motor Options: Available in Explosion Proof
  • Max Internal Pressure: 75 PSI / 5.2 bar
  • Max Liquid Temperature: 200 °F / 93 °C
  • Note: Product image may be different than actual product received.

Part Numbers

P/NPump DescriptionModified With
0135-0088-0100TE-MDX-MT3Standard
The below are modified TE-MDX-MT3's

Parts Breakdown

Parts Image
ItemPart NumberQtyDescription
0135-0088-01001TE-MDK-MT3, 1 Phase, Complete Standard Pump
10823-0008-10006#10-32 x 1-1/2" Long Screw (Stainless)
20135-0088-10001Front Housing with 1/2" MPT Inlet & Outlet (Ryton)
30135-0046-100011/16" CS x 2-7/8" OD "O" Ring (Viton)
40130-0028-10001Thrust Washer (Ceramic)
50130-0024-10001Shaft (Ceramic)
60135-0113-02001Impeller (Ryton)
70135-0087-10001Rear Housing (Ryton)
80130-0043-030010.375" Bore Drive Magnet
90135-0089-00001Motor Bracket (Plastic)
100150-0050-10004#10-32 x 3/4" Long Screw (Stainless)
110150-0051-10004#10 Washer
120150-0213-10001Motor, TEFC, 1 Phase, 115/230V, 50/60 Hz

Options

Options Image
ItemPart NumberQtyDescription
20135-0128-10001Front Housing with 1/2" MPT Inlet & Outlet (Polypropylene)
40135-0122-100011/16” CS x 2-7/8” OD “O” Ring (Teflon)
40750-0150-100011/16” CS x 2-7/8” OD “O” Ring (EPDM)
60135-0129-02001Impeller (Polypropylene)
70135-0127-10001Rear Housing (Polypropylene)
0750-1011-10001Stainless Steel Tag w/Customer's Desired Information (Not Shown)

Motor Information

0150-0213-1000 Motor
Conduit Box, TEFC, IP44
60Hz: 1Ph 0.2HP/0.149kW, 115/230V, 2.6/1.3AMPS, 3450 RPM
50Hz: 1Ph 0.2HP/0.149kW, 110/220V, 2.4/1.2AMPS, 2850 RPM

Please contact us for alternative motor data

Perfect for Applications Including

Applications for the TE-MDX-MT3 Magnetic Drive Pump include etching equipment, photographic processing equipment, ice flakers, plate processors, and marine air conditioning.

Great for Chemicals Including

The TE-MDX-MT3 has pumped Acetic Acid, Acetone, Benzene Sulfonic Acid, Citric Acid, Ethanolamine, Freon 11, Potassium Hydroxide, Potassium Permanganate, Sodium Hydroxide (Caustic Soda), Fresh Water, Salt Water, DI Water, and many more chemicals. The TE-MDX-MT3 may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-MDX-MT3. Chemical Resistance Chart

Summary Paragraph

March Pump’s industrial TE-MDX-MT3 is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 10 gallons per minute at 1 foot, and its maximum head is 17 Feet (7PSI). The standard wet end (the materials that come into contact with the solution) is composed of Ryton, Viton, and Ceramic. The inlet connection is 1/2 inch male pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 60 hertz 115/230V and 50 hertz 110/220V 0.2 horsepower totally enclosed fan cooled motor. The maximum internal pressure the pump can tolerate is 75PSI, and the maximum liquid temperature is 200 Fahrenheit or 93 Celsius. The March TE-MDX-MT3 centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents. To determine if the March TE-MDX-MT3 is suitable for your application, please contact March Pump.
